TOSCA Structure

TOSCA Structure是一个灵活的，模块化的，非参数化的结构优化软件系统，能提供拓扑，外形，条纹等各种类型的优化，基于工业标准的有限单元算法，支持ANSYS、Abaqus、MSC Nastran、NX Nastran等求解器。由于模型的参数化是必须的，且可以使用已有的模型文件进行优化，所以TOSCA的操作非常的简单。TOSCA是一个基于市场导向的优秀软件，在非线性，疲劳以及NVH等领域都有强大的优化能力。

主要特点和优势

 稳定、快速的优化算法

 能直接使用现有的模型

 有效处理非常巨大型的模型

 支持无限多的载荷工况

 满足静态、动态耦合需求的全面优化

 对非线性材料、接触和大变形的高保真优化

 更少的物理试验和物理模型

 在Tosca ANSA 环境下进行优化的前后处理

 优化结果可视化（TOSCA Structure.view）

 对已有IT资源的有效利用（office或html文档）

 自动验证分析及直接传输数据到CAD系统

工业应用案例-风力发电机主机架

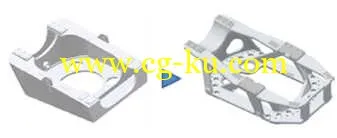

风力发电机越大，它的刚度和强度要求就越来越难以满足。重新设计的主机架应该有更好的经济性和振动性能。在同时满足静力和疲劳强度的条件下，主机架的拓扑优化要得到更轻量化的结构，同时还需考虑制造工艺的限制。

最终可行的设计方案中，重量减少了40%，同时也加快了整个开发进程。

由Suzlon GmbH提供

TOSCA Fluid

TOSCA Fluid是工业界独一无二的无参数流体流场优化软件，基于工业标准的CFD求解器，可以进行流场的拓扑优化。软件操作简单，无需模型参数化，现有的分析输入文件，甚至大规模的CFD模型文件均可直接用于优化。TOSCA Fluid提供经典的优化技术，使得仅仅定义设计空间以及流场任务，工程师便可创造性的进行产品设计。无需进行初始设计，且求解器仅运行一次便可。

TOSCA Fluid主要优点

 无缝集成当前顶尖的CFD求解器，保证了现有CFD模型的可续用性和分析结果的高质量

 完整的设计灵活性，无需费时的模型参数化、脚本编写和代码调用

 根据定义的流场任务和设计空间，获得创新的概念设计，无需初始设计

 充分利用给定的设计空间

 对具有任意复杂设计空间的工业大模型均适用

 优化只需运行CFD求解器一次

 使用CFD分析工具自动设计更新，减小压降，改进流场均匀性

 高效的降低噪声水平并改善分流比

 强大的用户界面方便进行后处理和优化结果几何生成

 加速创新产品投放市场的速度

 在设计流程早期进行流场的设计优化显著缩短开发周期

 自动化的设计开发可减小物理测试次数和产品原型的数量

TOSCA Fluid工业案例-冷却器进气软管

最新的冷却器进气软管设计要求尽量低的能量损失。在现有设计空间中的重新设计必须满足总的压力降不会减少。

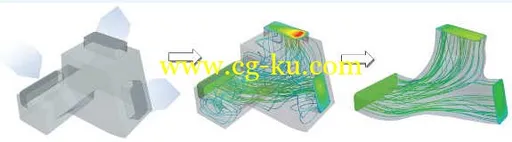

使用TOSCA Fluid进行优化可消除导致能量效率增加的返流和回流区域。新的设计方案同样满足给定的空间限制。只需进行一次求解，比起基于CAD参数化的设计和优化方案节省了大量的计算时间。

DS SIMULIA TOSCA 2016.2111 | 1.3 Gb

FE-DESIGN GmbH, a engineering and software company for numerical optimization solutions based on finite element analysis (FEA) and computational fluid dynamics (CFD), announced the release of DS SIMULIA TOSCA 2016 is efficient optimization based on FEA and CFD Simulations.

Today’s engineers aspire to develop innovative products in the shortest development time possible. Security, comfort, performance, efficiency, durability, and flexibility are just some of the aspects to take into account.

As leading technologies for structural optimization and flow optimization, both Tosca Structure and Tosca Fluid offer efficient optimization based on industry standard FEA (Abaqus, ANSYS, MSC Nastran) and CFD software (STAR-CCM+ and ANSYS Fluent).

The Tosca optimization suite enables engineers to take full advantage of any improvement potential while leveraging advanced simulation capabilities. It creates optimized design concepts to achieve the highest performance, quality, and eco-efficiency in a shorter development time.

What’s New for Tosca Structure 2016 and Tosca Fluid 2016:

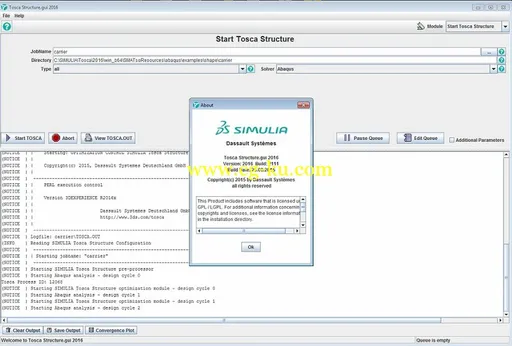

Tosca Structure 2016

- Tosca Structure.sizing now supports NVH-responses

Enables users to address common use scenarios in the automotive industry.

- Tosca Structure.sizing now support circular beams

Enables 3D printing of optimized lattice structures.

- New algorithm for casting manufacturing constraint for Tosca Structure Topology

Enables users to achieve castable designs where the old algorithm failed.

- New Sensitivity-based algorithms for Tosca Structure Shape

Enables users to solve shape optimization problems which do not use only stress-oriented objective functions

Other design responses like displacement can also be considered as objective functions or constraints

- Stress constraint now supports temperature boundary conditions for Tosca Structure Topology

- New inverse output of STL-surface for improved data exchange between results and CAD design environments

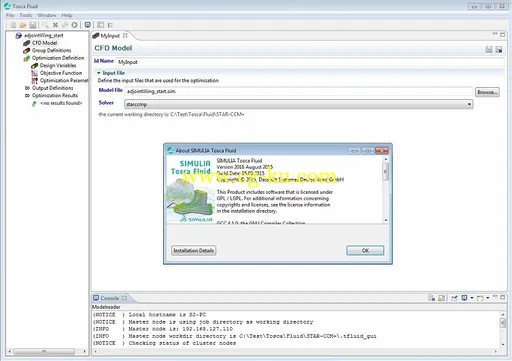

Tosca Fluid 2016

- Improved interfaces for Star CCM+ and Ansys Fluent tools

- New port for Windows operating systems

Enables users to run Tosca Fluid natively on Windows

- Improved optimality criteria

- New additional monitors for presenting objective functions of backflows

Enables users to track progress of optimizations involving backflows

About FE-DESIGN

FE-DESIGN GmbH is engineering and software company for numerical optimization solutions based on finite element analysis (FEA) and computational fluid dynamics (CFD). FE-DESIGN develops TOSCA Structure and TOSCA Fluid - leading technologies for structural optimization (topology, shape and bead) and flow optimization (topology). The company also provides comprehensive expertise and unique software applications in flexible, customized engineering services.

FE-DESIGN has offices in Europe and the USA and is globally represented by a worldwide network of authorized resellers.

Name: DS SIMULIA TOSCA

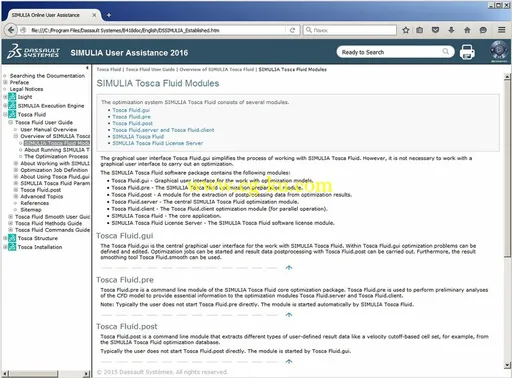

Version: (64bit) 2016 build 2111 with Documentation

Interface: english

OS: Windows / Linux

Size: 1.3 Gb
