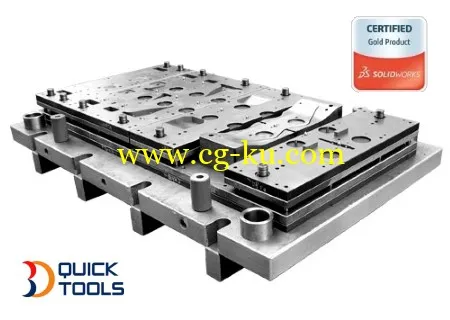

3DQuickPress V6.0的图片1

3DQuickPress软件开发商在2015年给模具设计者带来最新的版本6.0,语言包括:英语,中文 ,支持SolidWorks 2011-2015 64bit

3DQuickPress是3DQuickTools跟智诚科技ICT共同合作研发的一套完全整合于SolidWorks的三维连续冲模设计解决方案,是SolidWorks公司认证的黄金合作伙伴。与SolidWorks统一界面,完全一致的使用风格。本系统包含零件分析及展开、料带布排、模架及冲头设计等功能,为电子、家电及汽车结构设计等行业提供从三维建模,零件展开,三维组装到二维出图的完整解决方案。

3DQuickPress唯一使用3D才能解决在2D作业中所无法预知的错误并透过协同设计达到快速准确的冲模设计。3DQuickPress是SolidWorks对于冲模设计的解决方案软件。直接透过3D模型,迅速完成连续冲模的设计,并透过eDrawing有效地达到资料沟通,因而能在短期间完成冲模设计。强大的钣金特微辨识处理技术可以快速依据SolidWorks钣金或其他CAD系统输入的零件料所提供的资料库来计算出弹性与弯曲的误差,以及冲压行程的调整与模具的自动产生。

3DQuickPress version 6.0 | 1.3 Gb english, chinese

3D QuickTools Ltd., a the leader in 3D die design automation and Strategic Technology Solutions, has released the 6.0 version of 3DQuickPress - is a last release SolidWorks add-on for progressive die design.

The flagship product - 3DQuickPress was introduced to the international market in 2003 and was the Certified Gold Product by SolidWorks in June 2006. In 2005, 3DQuickForm was launched and soon became one of the most preferred stamping simulation software offering accurate blank prediction at affordable price. 3DQuickMold was introduced in 2009 to the world market to compliment the need for plastic mold design solution.

3DQuickPress is a SolidWorks add-on for progressive die design. With a 3D solid model of the part, a 3D strip can be created quickly and easily, and also be communicated clearly throughout the work group using the free SolidWorks eDrawings viewer before further detailing of the die without time wasted.

Powerful Unfold, a feature recognition technology, can handle native SolidWorks® sheet metal parts for imported data, and provide a knowledge base for spring back and bend allowance. Form features can save valuable time from die designs and give them more design productivity tasks.

Strip Layout Manager provides users with intuitive tools to quickly complete the strip simply by drag & drop command with instant graphical feedback. It has extensive functionality including optimization and support for multiple parts.

Die Set Design begins after finishing the strip layout. 3DQuickPress® will automatically create all punches defined in the strip design. It supports user definable databases, tools for component placement, standard components library and support for compound die & transfer die etc.

Production-Ready-Libraries (PRL) assists users to insert home-made components into die sets structure with minimal manual operations

3DQuickTools users are mainly coming from automobile, aircraft, electronics, and medical industries located in over 20 countries including USA, Canada, Germany, and Japan. The demand from China and India market has been increasing significantly in recent years.

3DQuickPress V6 What's New: http://blog.cati.com/3dquickpress/

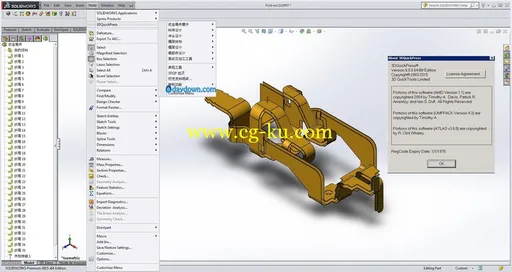

3DQuickPress V6.0的图片2

About 3D QuickTools Ltd.

3D QuickTools Ltd. was set up by a group of experienced tooling specialists and CAD/CAM programmers in 2002. Our mission is to enable tooling engineers to use the power of 3D design. The flagship product - 3DQuickPress got the support and applause from SolidWorks Corporation and many famous tooling companies even before the initial product launch. The die design system is based on SolidWorks platform to take the benefits of its powerful modeling capabilities. The company concentrates to develop trade-specific functions to make 3DQuickPress the best-in-class solution to the metal manufacturing industries.

Name: 3DQuickPress

Version: (64bit) 6.0.0

Interface: english, chinese

OS: Windows XP / Vista / 7even / 8 / 8.1

System Requirements: SolidWorks 2011-2015

Size: 1.3 Gb
