CG数据库 >> 3D Systems Geomagic Design X V4.1.1.0

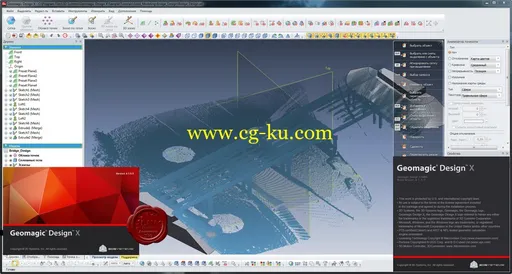

3D Systems Geomagic Design X V4.1.1.0的图片1

Geomagic Design X(原Rapidfrom XOR)软件是世界上唯一能够以3D扫描数据为基础创建CAD模型的3D逆向工程软件。可编辑的实体模型可以适用于很多方面。

转换到CAD最快的路径

与所有3D扫描仪的互换

创建与特征树同步的履历CAD模型

能够转换成Solidworks,Pro/E,NX,AutoCAD,CATIA等其他文件格式

3D Systems Geomagic Design X V4.1.1.0的图片2

使得3D扫描数据更容易使用

无论什么样的3D扫描仪测定的点云或者面片基本上都不能直接用于设计。 Geomagic Design X能够从破损或者含有杂点的扫描数据直接创建模型。

3D Systems Geomagic Design X V4.1.1.0的图片3

从原始数据得到CAD数据最快的手段

这是最简单快捷从3D扫描数据得到特征建模数据的方法。Design X的Redesign工具能够比使用CAD软件再设计着实的缩短了工作时间。

3D Systems Geomagic Design X V4.1.1.0的图片4

基于CAD软件的用户界面更容易理解学习

使用过CAD的工作人员很容易开始Design X的学习,XOR的实体建模工具是基于CAD的建模工具,容易理解的简洁的用户界面有利于软件的学习。

3D Systems Geomagic Design X V4.1.1.0的图片5

强大且灵活

Design X基于完整CAD核心而构建,所有的作业用一个程序完成,用户不必往返进出程序。并且依据错误修正功能自动处理扫描数据,所以能够更简单快捷的处理很多的数据。

3D Systems Geomagic Design X version 4.1.1.0 | 3.2 Gb

3D Systems, a leading global provider of 3D content-to-print solutions including 3D printers, print materials and on-demand custom parts services for professionals and consumers alike, has released the 4.1.1 version of Geomagic Design X (formerly Rapidform XOR), is the only reverse engineering software that combines history-based CAD with 3D scan data processing so you can create feature-based, editable solid models compatible with your existing CAD software.

Geomagic Design X (formerly Rapidform XOR), the only 3G (third-generation) reverse engineering software, is a complete software application for creating CAD models from 3D scan data. With Geomagic Design X, you can open data from any 3D scanner and quickly create editable, parametric solid models of virtually any physical object. These models can be transferred from Geomagic Design X into popular CAD applications, including SolidWorks, Siemens NX, Pro/ENGINEER, CATIA V4, CATIA V5 and AutoCAD with complete feature trees intact. This means that – unlike second generation reverse engineering software – the models from Geomagic Design X are editable just like any other part designed in CAD. And XOR can save models as Parasolid, STEP, IGES and STL for use in any CAD/CAM/CAE application. The third-generation parametric reverse engineering approach inside Geomagic Design X makes creating high quality, ready to manufacture CAD models fast and easy. Creating complete solid models accurate to within a few microns of a 3D scan takes less time than redrawing it in CAD. Geomagic Design X, paired with a 3D scanner, is simply the fastest, most accurate way to create a design model of a real-world object.

- Parametric CAD Models from 3D Scan Data

Geomagic Design X uses proven solid and surface modeling techniques to create CAD models from point clouds and polygon meshes produced by 3D scanners. Unlike the raw data that is created by a 3D scanner, these CAD models are lightweight, made up of editable features, and are directly usable for machining, design changes, simulations, analysis and much more. And unlike first- or second-generation reverse engineering approaches, the models you create in Geomagic Design X aren't just static NURBS surfaces. They can be manipulated, edited, updated and changed at any time and in any way you define. And every model created in Geomagic Design X is sure to be accurate. The patent-pending Accuracy Analyzer shows real time deviation analysis while you redesign the part, so you can ensure your finished model is faithful to the original 3D scan. And it saves time because you never have to leave Geomagic Design X to check your modeling accuracy.

- Capture Design Intent

In Geomagic Design X, you're not just capturing the shape of the scanned object, you're capturing its original design intent as well. XOR automatically detects features, such as revolves, extrusions, sweeps and fillets, on the scanned object. Finished CAD models from Geomagic Design X are “intelligent” – they contain both form and function. Because the models are made up of features extracted from scans, rather than just surfaces that are fit to scan data, they are much cleaner and have defined dimensions and constraints. Depending on the need, you may want your reverse engineered models to match the exact geometry of the real world part, including all of its imperfections. But more often than not, a pristine, idealized CAD model that represents the original design intent of the part is preferred. Geomagic Design X is the only reverse engineering software that extracts design intent as CAD features.

- Seamless Interoperability with Full Modeling History in CAD System

CAD models are the industry standard for communicating design parameters and manufacturing requirements. Once the 3D scan data of a part has been modeled in Geomagic Design X, a fully parametric solid model with modeling history can be exported through XOR's patent-pending liveTransfer and modified in SolidWorks, Siemens NX™, Pro/ENGINEER, CATIA V4, CATIA V5 and AutoCAD®. Other 3D applications can open models created in Geomagic Design X using industry-standard formats like Parasolid, STEP and IGES.

- Faster Than Any Other Reverse Engineering Approach

Geomagic Design X takes an elegantly simple approach to reverse engineering: redesign an object the same way it was originally designed. Because XOR uses 3D scan data as a template on which to build a CAD model, rather than converting the scan data into a NURBS surface model, you don’t need to spend much time cleaning or editing the point cloud or polygon mesh itself. Traditional first- and second-generation reverse engineering approaches require a perfected mesh, which can sometimes take hours to refine. With Geomagic Design X, you skip directly to making the CAD model. Benchmark tests have shown that Geomagic Design X's third-generation approach cuts complex reverse engineering jobs from days to hours.

- Engineering-grade CAD Models from Billions of Points

A new out-of–core massive point cloud engine of Geomagic Design X handles 10x more data with real-time rendering of billions of point cloud. Thus, Geomagic Design X is also a right software solution for huge size of scan data generated by long range 3D scanners as well. Thanks to Geomagic Design X's powerful geometric feature extraction functionality, engineering-grade as-built CAD models can be easily created from huge size of scan data.

3D Systems Geomagic Design X V4.1.1.0的图片6

- Right Solution for Both Parametric CAD Modeling and Freeform NURBS Patching

Geomagic Design X is also the best reverse design software for 2G reverse modeling of freeform NURBS patching as well as 3G reverse modeling of parametric CAD modeling. Geomagic Design X automatically creates, orderly NURBS surface models where the surface patches follow the underlying features based on its intelligent "Feature-Flow" surfacing functionality. Downstream jobs such as FEA and CAM will appreciate orderly networks that have fewer patches are aligned to the major topology of the part.

About 3D Systems

3D Systems is pioneering 3D printing for everyone. 3DS provides the most advanced and comprehensive 3D design-to-manufacturing solutions including 3D printers, print materials and cloud sourced custom parts. Its powerful digital thread empowers professionals and consumers everywhere to bring their ideas to life in material choices including plastics, metals, ceramics and edibles. 3DS' leading healthcare solutions include end-to-end simulation, training and integrated 3D planning and printing for personalized surgery and patient specific medical and dental devices. Its democratized 3D design and inspection products embody the latest perceptual, capture and touch technology. Its products and services replace and complement traditional methods with improved results and reduced time to outcomes. These solutions are used to rapidly design, create, communicate, plan, guide, prototype or produce functional parts, devices and assemblies, empowering customers to manufacture the future.

Name: 3D Systems Geomagic Design X

Version: (64bit) 4.1.1.0

Interface: english

OS: Windows XP / Vista / 7even / 8 / 8.1

Size: 3.2 Gb
