拥有最完美的性价比，结合我们提供的服务，让Dlubal程序成为任何静、动态设计人员的必备工具。人性化操作和实用性是我们程序发展的理念和优先考虑的因素。因此，与客户的对话是重中之重。建设性的批评、建议和要求在我们程序的概念里占据了重要的地位。对于我们来说，一个程序的发行并不代表这个程序的工作已经结束了。总是致力于优化我们的产品，我们永远都致力于开发和扩展来帮助和支持用户。

使用Dlubal软件，你可以选择手动输入表格，或者选择图形输入。这两个选择都有自身的优点，这就是为什么这个程序允许在两种输入方式中切换。当然，对于参数值的改变会总是立即导入到每个模块中。同时，你可以根据你的需要安排结果输出。

对于有限元，Dlubal已经与FEM Consulting Brno公司密切合作超过十年。他们的团队，在Kolar教授和之后的Nemec博士的指导下，自从1967年起在有限元方法领域就一直是研究领先者。他们的经验对可能是最易于操作的有限元程序和稳定可靠的计算基础的结合有着巨大的贡献。

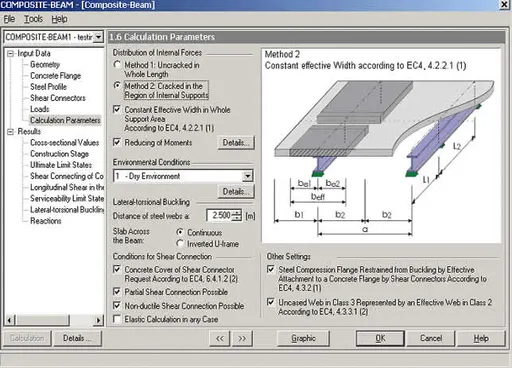

COMPOSITE-BEAM is based on the bidirectional communication between RSTAB and its add-on modules. However, to use COMPOSITE-BEAM, no RSTAB license is required (stand-alone operation is possible).

Features

Single-span and continuous beams with definable boundary conditions

Automatic determination of effective cross-sections

Free arrangement of construction supports for construction stage

Free definition of concentrated, linear and linearly variable loads as fixed and variable loads with specification of concrete age on loading

Freely definable construction loads as well as moving construction loads

Automatic load combination

Calculation of cross-section properties according to method 1 or 2

Calculation of elastic internal forces with RSTAB

Redistribution of moments

Design for bending and shear force resistance with interaction

Determination of required shear connectors and their distribution

Design of longitudinal shear force resistance

Output of governing support reactions for construction and composite stage including loads of construction supports

Lateral-torsional buckling analysis

Analysis for limitation of crack widths

Check of natural frequency
