ESI集团宣布推出WELD PLANNER方案。WELD PLANNER方案是一种创新的软件，可以在设计初期规划阶段对焊接当中普遍出现的变形进行评价和控制。ESI集团焊接产品经理哈罗德·波兹内（Harald Porzner）说：“采用这一方案，可以在不到一天的时间里，对复杂的焊接中出现的变形进行控制。因此能在试验周期和变形修补方面大大节约成本。”
Visual-WELD是一个为模拟焊接工艺开发的软件界面，整个焊接过程及焊接工艺的流程都集合在界面内。它可以应用在焊接产品设计和加工的任一阶段，使得焊接模拟更加快速准确，补充了原来的焊接模拟方案。直观简洁是开发这一界面的主要考虑因素。
Visual-WELD专门致力于焊接工艺设计及焊接装配的工程师，它可以帮助工程师遵循客户规范和产品要求的同时考虑低成本和要求公差的情况下使残余应力最小化。大家都知道甚至最简单的焊接缺陷都可能引起整个结构的失效，Visual-WELD可以帮助工程师通过分析温度场，微观组织和残余应力控制整体的焊接质量。从而使工程师避免一些焊接中的问题，比如焊缝背面温度，应力引起的裂纹以及由于在错误位置的产生应力引起的开裂。除此之外，它还能帮助大家考虑在焊接装配过程中零件受到冲击时的应力分布和热应力位置。
利用焊接仿真方案，可以预测焊接工艺热的影响，能够进行划算的变形工程，焊接质量和残余应力控制。
找到可以帮助你的!
焊接质量
焊接仿真方案用于提供解决设计师、工艺规划师和制造执行者常见的问题
变形工程
完全集成的方案用于仿真焊接装配
ESI Weld Planner 2012.0 | 1.2 Gb

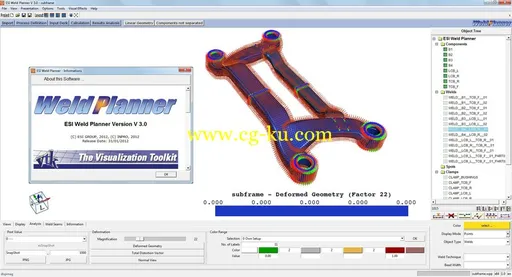

ESI Group, a pioneer and world-leading supplier of digital simulation software for prototyping and manufacturing processes, announced the release of Weld Planner 2012 – an innovative software that enables you to evaluate and control Welding Distortion Engineering at the early stage of Preliminary Design and Planning.

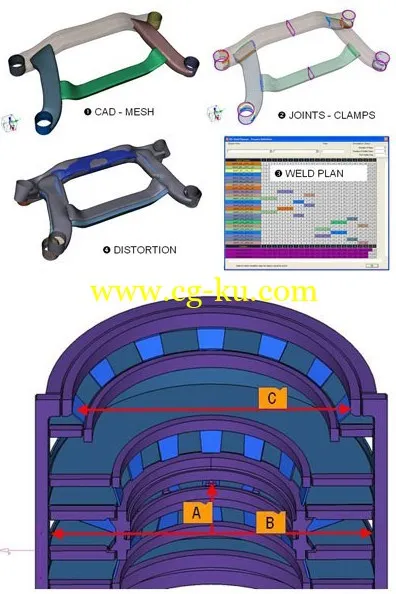

The Weld Planner is a milestone in terms of simplicity. The application provides access to welding-induced distortion simulation for people unfamiliar with Finite Elements Simulation. Training to be fully operational is completed in just one day. Weld Planner is a streamlined solution which includes fast generation or automatic finding of weld seams between parts; convenient definition of the welding sequence as a robot plan; typical industrial clamping conditions; and versatile possibilities for the visualization of computed distortion.
About ESI Group
ESI is a pioneer and world-leading solution provider in virtual prototyping for manufacturing industries that takes into account the physics of materials. ESI has developed an extensive suite of coherent, industry-oriented applications to realistically simulate a product’s behavior during testing, to fine-tune manufacturing processes in accordance with desired product performance, and to evaluate the environment’s impact on performance. ESI’s solutions fit into a single collaborative and open environment for End-to-End Virtual Prototyping, thus eliminating the need for physical prototypes during product development. The company employs about 850 high-level specialists worldwide covering more than 30 countries. ESI Group is listed in compartment C of NYSE Euronext Paris.
Name: ESI Weld Planner
Version: 2012.0
Interface: english
OS: Windows XP / Vista / Seven
Size: 1.2 Gb
