全球首屈一指的三维结构分析与设计工程软件

适用于任何结构工程任务的一站式解决方案

STAAD.Pro 是结构工程专业人员的最佳选择，可通过其灵活的建模环境、高级的功能和流畅的数据协同进行涵洞、石化工厂、隧道、桥梁、桥墩等几乎任何设施的钢结构、混凝土结构、木结构、铝结构和冷弯型钢结构设计。

STAAD.Pro 助力结构工程师通过其灵活的建模环境、高级的功能及流畅的数据协同分析设计几乎所有类型的结构。

灵活的建模通过一流的图形环境来实现，并支持 7 种语言及 70 多种国际设计规范和 20 多种美国设计规范。

包括一系列先进的结构分析和设计功能，如符合 10CFR Part 50、10CFR21、ASME NQA-1-2000 标准的核工业认证、时间历史推覆分析和电缆（线性和非线性）分析。

通过流畅的数据协同来维护和简化目前的工作流程，从而实现效率提升。STAAD.Pro 可与 STAAD.foundation 和 ProSteel 等其他 Bentley 产品相集成，OpenSTAAD 则可与第三方程序集成。

使用 STAAD.Pro 为大量结构设计项目和全球市场提供服务，可扩大客户群，从而实现业务增长。

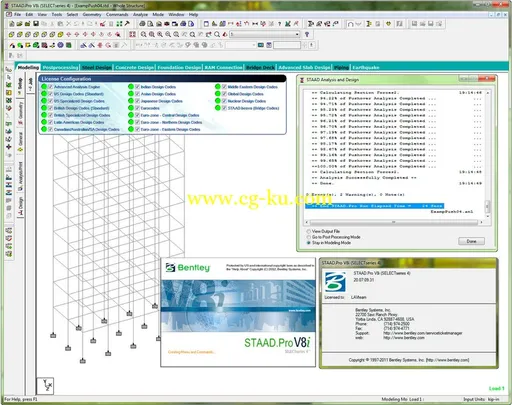

Bentley STAAD.Pro V8i (SELECTSeries 4) 20.07.09.31 | 866.6 mb

STAAD.Pro is the structural engineering professional’s choice for steel, concrete, timber, aluminum, and cold-formed steel design of virtually any structure including culverts, petrochemical plants, tunnels, bridges, piles, and much more through its flexible modeling environment, advanced features, and fluent data collaboration.

Bentley Systems announce the latest new release of the STAAD.Pro V8i SELECTseries 4. The new release has undergone not only the stringent quality assurance programme that all STAAD.Pro releases go through, but also additional QA processes required for applications that are to be used on nuclear projects, notably the specific 10CFR21 reporting requirements. This has resulted in a large number of updates/fixes reported in the Revision History documentation. Additionally we have added 2 new features that all users can take advantage of.

- Enhanced ABS/SRSS Combination Results

The nature of ABS and SRSS methodology means that only a single value is returned from these forms of load combination, i.e. always positive. However, although a single value this can represent an envelope of results from a maximum negative to maximum positive. Also, consider forces on a member, these have six degrees of freedom at each end. Each degree of freedom can be either positive or negative, resulting in 64 various permutations of result for a single combination.

The current LOAD COMBINATION command is enhanced with a GENERATE option to activate creation of the 64 permutations. As an SRSS combination can include algebraic parts, the output file indicates the envelope covered by these and ABS showing the maximum and minimum values. Currently code checking for AISC 360-10 and ASME NF codes will take advantage of the results from the 64 permutations; other codes will behave as before.

- Connection Tags

This new feature allows ends of members to be given reference tags to represent a connection type. These tags will be transferred with the model into an ISM repository allowing any detailing application that pulls the model from the ISM repository to detail an appropriate connection.

An XML template is provided to allow the capacities of connections for given column/beam combinations to be quickly checked against the analysis results.

Also where specific connection types are associated with releases (e.g. a shear connection having MZ release), the release can be assigned at the same time as the connection tag.

Other updates and bug fixes.

59 Issues addressed:

- Issues addressed in the Analysis/Design engine (31)

- Issues addressed in the Pre-Processing Mode (10)

- Issued Addressed in the Post-Processing Mode (01)

- Issues Addressed in the Piping Mode (01)

- Issues Addressed in the Editor, Viewer and other modules (08)

- Issues Addressed with Printing and Documentation (08)

Included bonuses:

- Bentley STAAD.Offshore (Version 03.00.01.02)

STAAD.Offshore is a powerful suite of pre- and post processor modules for the STAAD.Pro structural analysis and design program. Comprised of two primary modules, waveload and transport, you additionally have the option of carrying out design code checks to the American Petroleum Institute (API) recommended practice for planning, designing, and constructing fixed offshore platforms with the STAAD.Pro API code check module.

- Bentley STAAD.Foundation Advanced V8i (Version 06.02.00.59)

STAAD Foundation Advanced is a comprehensive foundation design program that offers the ability to model complex or simple footings, including those specific to Plant facilities such as octagonal footings supporting vertical vessels, strap beam foundations supporting horizontal vessels, ring foundations supporting tank structures, and drilled or driven pier foundations.

Common foundations such as isolated footings, combined footings, strip footings, pile caps, and mat foundations can also be designed for larger structures or using parametric wizards. It provides a streamlined workflow through its integration with STAAD.Pro and can also be used as a stand-alone program.

- Bentley STAAD RELATED BOOKS

About Bentley Systems, Incorporated

Bentley is the global leader dedicated to providing architects, engineers, geospatial professionals, constructors, and owner-operators with comprehensive software solutions for sustaining infrastructure. Bentley Systems applies information mobility to improve asset performance by leveraging information modeling through integrated projects for intelligent infrastructure. Its solutions encompass the MicroStation platform for infrastructure design and modeling, the ProjectWise platform for infrastructure project team collaboration and work sharing, and the AssetWise platform for infrastructure asset operations - all supporting a broad portfolio of interoperable applications and complemented by worldwide professional services. Founded in 1984, Bentley has more than 3,000 colleagues in 50 countries, more than $500 million in annual revenues, and since 2003 has invested more than $1 billion in research, development, and acquisitions.

Name: Bentley STAAD.Pro V8i

Version: (SELECTSeries 4) 20.07.09.31

Interface: english

OS: Windows XP / Vista / Seven

Size: 866.6 mb
