GearTrax是一个可以方便地设计实体齿轮的SolidWorks插件，主要用于精确齿轮的自动设计和齿轮副的设计，通过指定齿轮类型、齿轮的模数和齿数、压力角以及其它相关参数，GearTrax可以自动生成具有精确齿形的齿轮。为工程师提供了一种简单易用的、在SolidWorks内部就可完成的驱动零件实体造型工具。可以设计的齿轮类型包括直齿轮、斜齿轮、锥齿轮、链轮、渐开线齿形、带齿轮、蜗轮蜗杆、花键、V带轮等。

Camnetics 2014 Suite | 176.2 mb

New version Camnetics Suite 2014, add-on for SolidWorks, Solid Edge and AutoDesk Inventor, provides advanced tools and advanced features for designers.

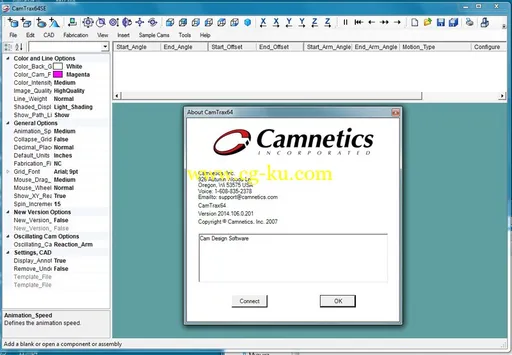

CamTrax standard cam types include cylindrical cams, plate (aka disk) cams and linear cams. Choose the follower type that the design requires; on center translating, off center translating, swinging arm and flat-faced reciprocating. Selecting different motion synthesis is a snap with CamTrax. Choose between virtually any standard cam motion with a couple mouse clicks. With Excel the designer can analyze the cam motions and compare different motion synthesis. Don't have Excel? Output can also be to a text file! Charted are displacement, velocity, acceleration, pressure angle, cam shaft torque, radius of curvature, contact stress and normal force.

CamTrax64 standard cam types include cylindrical cams, plate (aka disk) cams and linear cams. Choose the follower type that the design requires; on center translating, off center translating and oscillating (swinging arm). Selecting different motion synthesis is a snap with CamTrax64. Choose between virtually any standard cam motion with a couple mouse clicks. With Excel the designer can analyze the cam motions and compare different motion synthesis. Don't have Excel? Output can also be to a text file! Charted are displacement, velocity, acceleration, pressure angle, cam shaft torque, radius of curvature, contact stress and normal force.

GearTrax provides the designer with an easy to use tool for creating solid models of drive components. Create spur, helical, straight bevel and involute splines with true involute tooth profiles.

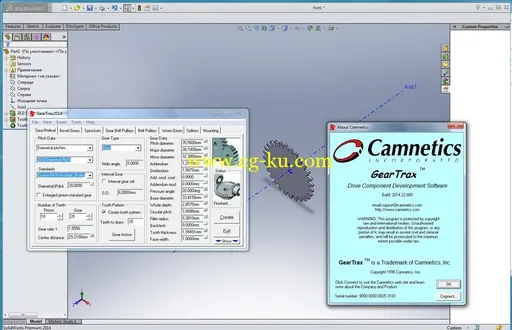

GearTrax is intuitively easy to use for the designer with limited gear experience yet powerful enough for the gear expert. The animation window shows the spur/helical gear mesh which updates as the data is changed. It is extremely useful in understanding how changes to the gear parameters reflects on the gear mesh.
