Guthrie QA CAD

是一款CAD绘图修订管理工具，可说是工程绘图工作者的必备软件，功能强大，可以帮你减少很多绘图中的重复步骤，节省大量时间。

File size: 36 MB

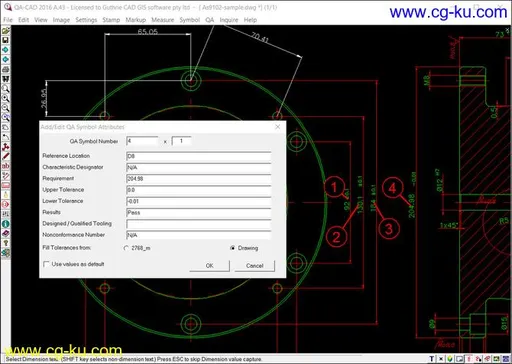

QA-CAD enables you to quickly add balloons (bubbles), or QA stamps to identify dimensions and tolerances on your drawing while reducing the chance of errors from manually inputting information.

QA-CAD is a QUICK and EASY First Article Inspection software (FAI software) or AS9102 software at very reasonable price. QA-CAD quickly minimizes the time to produce a First Article Inspection (AS9102/EN 9102, PPAP etc.) and ballooned drawing by 30% to 80%.

• Export embedded data to EXCEL/CSV for AS9102/EN 9102, FAI or PPAP

• Easy to draw balloons and adjust balloons size, color and numbers

• Capture dimension value automatically from CAD drawing

• Extract GD&T symbols from CAD drawing (support soon).

• Export ballooned drawing to PDF, TIFF, JPG, BMP etc.

• Import CMM data (support soon, please contact us for details).

and MORE…

QA-CAD is an essential tool in the engineeringdesign process. If you are still plotting drawings and adding numbered stamps and revisions by hand, then QA-CAD is for you! Save your valuable time and resources with our QA stamping software that overlays drawings with auto-numbered stamps and markup notes and corrections (text, sketches, boxes, lines and arrows).

With just a press of a button the drawing, along with the revision stamps and markup notes/corrections, can be saved to a PDF and sent in an email. The source drawing remains untouched by the stamping and markup operations.

OS:

Win 2003/2008/2012/Citrix/XP/Vista/Win7/win7x64/Win8/Win8x64/Win10
