一款可以将PDF转换为CAD的工具，软件不仅支持PDF转换CAD格式，还支持将PDF转换到DWG、DXF等格式的文件，并且你还可以对图纸参数、转换对象等进行设置，功能十分强大。

English | File size: 12.8 MB

pdf2cad is a simple-to-use program that facilitates the conversion of files from the PDF format to the DXF and DWG file types, supported by AutoCAD. But it also supports the HP-GL/2 format, associated with the Hewlett-Packard Graphics Language.

Comes with an old-school, yet user-friendly UI

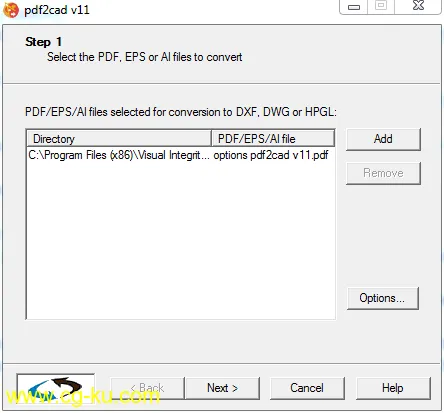

The interface of the app is based on a wizard-like layout, so you just have to follow a few simple steps to carry out a task in no time.

PDFs can be imported into the list using either the file browser or drag-and-drop function. Batch processing is supported, so you can add as many files as you want, to convert them at once.

The simplest way to initialize the encoding operation using default settings is by specifying the extension and output directory, which can be the same as the original items or otherwise.

Provides you with numerous options for customizing your output results

However, advanced users are usually interested in adjusting the conversion process to their own preferences. Therefore, you can select the characters as strings or curves, rotate the output by any number of degrees, scale the text, emulate PDF cropping, as well as ignore paths, text and images.

Moreover, you can add font mappings, remove white margins, configure the page size, convert only pages within a range, as well as process multi-page PDFs to a single item or multiple ones, or join them horizontally or vertically. As far as DXF and DWG format options go, you can specify the precision factor, select the layer mode, establish the minimum line width, and choose a fill option.

A handy PDF conversion tool for engineers, architects and anyone working with CAD apps

pdf2cad is light on the system resources, using a low-to-moderate quantity of CPU and system memory. It has a good response time and finishes a conversion job rapidly and without errors. We have not come across any issues throughout our evaluation. Thanks to its intuitive layout yet advanced configuration, pdf2cad should please the entire audience.

FEATURES :

Convert PDF files into the standard CAD interchange format DXF as well as HPGL

Convert one file or multiple files using the built in batch mode

Convert all pages or specify a page rage

Intelligent object recognition

Concatenates characters to form editable words and lines of text

Cropping

Add white space to page

Rotate output by any degree

Option to ignore text, images or paths during conversion

Map fonts for high fidelity file match

Scale page to match original dimensions of file

Specify minimum line width

Separates layers in CAD drawing based on colors

Dashed/dotted lines as segments

Saves all images as referenced file in DXF format

Command-line version and Windows DLL available for developers

Expanded support for non-standard fonts

Option to remove or outline hatches/fills

Improved reporting on errors and warnings

Streamlined interface for faster and easier conversions

Whats New:

nput Options

pdf2cad v11 offers a new option to specify password protected PDF-files

v11-input

Output Options:

New options to define the page number in the output filename

New option to use the filename as directory name

v11-numbering

Text options:

Support of Unicode character set

Enhancements handling unknown character encoding

Formats:

Added inch as unit option to DXF/DWG format

Layers:

Layer based on type of entities

Improved nested layering and name verification

New option to convert each layer to a separate file (DXF only)

v11-layers

Scale options:

New ratio option using mm, inches, feet and meters to define the scaling

v11-scale

Image options:

New option to ignore small images or when cropped convert them to color lines

New option to move image objects to the background

New option to show warning message if PDF file contains IMAGE objects

General:

Improved font warnings handling

Bug fixes and enhancements DXF/DWG formats

Enhanced PDF interpreter

New 64-bit version of pdf2cad

Supports latest operating system releases including Windows 10.0 and Mac OS X Mavericks

pdf2xxx CL (windows) supports Unicode filenames
