dwgConvert

9具有将AutoCAD dwg图形文件转换为其他AutoCAD格式或PDF所需的所有功能。

English | File size: 26.2 MB

dwgConvert is a software application whose purpose is to help you perform conversions between DXF, DWG and DWF file formats. The tool is able to read and write all AutoCAD DXF and DWG versions up to 2018, as well as supports AutoCAD DWF 4.2, 5.5, and 6.0 versions.

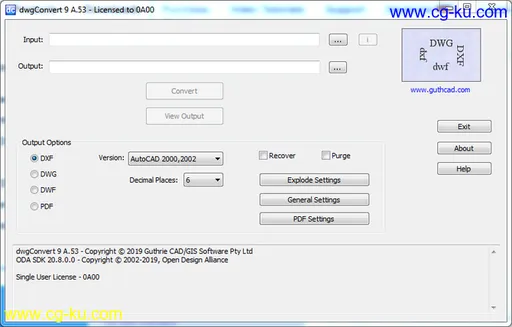

User interface

The GUI looks clean and embeds basic configuration parameters in the main panel. You should know it hides an extra set of advanced features under the hood. In case you cannot decode them on your own, you can appeal to the help manual included in the package.

Batch processing is not available via the program’s graphical user interface but it can be activated using the command-line console.

Conversion settings

You are given the freedom to pick the file that you want to convert, select the saving directory, as well as choose the output format and file version.

Additional settings offer you the possibility to decompose (explode) entities to simpler entity types, such as arc/circle to polyline, ellipse to polyline, hatch to lines, spline to polyline, table to lines/text, 3DFace (visible edges) to lines, and SHX text to lines and arcs.

What’s more, you are allowed to delete entities for hidden layers, translate ECD coordinates to WCS coordinates, as well as translate model space (paper space is removed).

Tests have shown that dwgConvert carries out the conversion process very quickly. It does not eat up a lot of CPU and memory so the overall performance of the computer is not hampered.

Final words

All things considered, dwgConvert makes it easier for you to convert AutoCAD files. It can be employed by rookies for straightforward conversion jobs, while advanced users may automate batch tasks via the command-line console and fine-tune the conversion parameters.

Features :

Reads all AutoCAD DXF and DWG versions 2.5 to 2018

Write AutoCAD DXF/DWG versions 9,10,11-12,13,14,2000-2002,2004/5/6, 2007, 2008, 2009, 2011, 2012. (2013 write support expected to be available mid November. It will be a free upgrade to existing dwgConvert 7.0 licensees)

Repair damaged drawings using the software's advanced audit and recover.

Read / Write DWF versions 4.2, 5.5, 6.0

Explode complex entities such as Attrib, Table, Spline, Region, 3DSolid, Body, Mechanical Desktop, Block, Dimension, Leader, Hatch, Polyface Mesh, 3D Face, Ellipse to simpler entity types.

Extract and Replace OLE objects with Raster Images.

Extract Layouts to separate drawings.

Remove all paper space Layouts to create a model space drawing only.

MText to Text conversion.

Explode of MText with emebedded fonts keeping embedded font styles.

Explode SHX text to lines and arcs.

Superior conversions to earlier versions of AutoCAD allow closest preservation of the original drawing.

Command Line mode allows automated translations and is only available in Network Licenses and 5+ user Licenses.

Supports Wild Card file naming. e.g. dwgConvert *.DWG *.DXF both within the user interface, and on the command line.

Whats new:

Now supports AutoCAD 2017
