Multilingual | File size: 8.93 MB

TRANSDATpro performs Coordinate Transformations fast and with high accuracy. The geodetic program supports worldwide thousands of Coordinate Systems, geodetic Reference Systems and Datum Shifts, user-defined systems, 2D/3D transformations, INSPIRE, NTv2, HARN, EPSG, GPS, continental drift and more. The coordinate converter reads and writes the file formats Text, CSV, SDF, dBase, Arc-Shape, Arc-Generate, KML, GPX and others. Furthermore: Outdoor GPS reception, mapping in Google Earth, Google Maps and OpenStreetMap, Meridian Convergence and Extra Parameter, Polygonal scopes in NTv2 files, multilingual user interface.

Features :

Data input, data output and file formats:

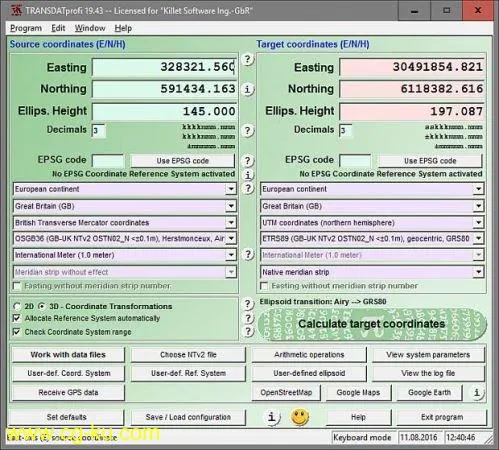

Keyboard Mode for direct input of coordinates;

File Mode for data input from files and data output to files;

Batch Mode for batch processing of multiple files using a control file;

File formats Text, CSV, SDF, dBase, ArcShape and ArcGenerate for data input;

File formats Text, CSV, SDF, dBase, KLM, ArcShape and ArcGenerate for data output;

Conversion from one file format to another;

Very flexible file configuration;

Various filters for the input file;

Control of the notation of coordinates;

Copy function for Text, CSV, and dBase files;

Finding scattered coordinates in Text files;

Processing of text files without line orientation;

Shape to Shape function;

Shape to KLM function;

Support of the ArcGenerate GIS exchange format for geometries;

Log file with the results of the current session;

Export and import to / from configuration files;

One-click copy and paste of all coordinate components simultaneously.

Quality:

Strict formulas of Schatz, Schuhr, Klotz and Hooijberg;

Transformation parameters of the Surveying Authorities of the respective countries;

Consideration of the EPSG specifications;

Helmert 7-parameter Bursa-Wolf and Molodenski reference system transitions;

Exact NTv2 transformations for many countries;

High-precision NTv2 transformations for the German Federal States and other states provinces;

Source and target Coordinate Reference Systems;

World-wide and country-specific Coordinate Reference Systems;

Current and historical Coordinate Reference Systems;

Numeric and alphanumeric Coordinate Systems;

UTMRef, GEOREF, QTH, BNG and ING with different grid mesh sizes;

INSPIRE systems, ITRS annual realizations, WGS84 epochs, GPS coordinates;

D and 3D Coordinate Transformations;

Automatic selection of the quired NTv2 files;

Use of EPSG codes of the Coordinate Reference Systems;

Hierarchical structure by continent, country, Coordinate System, Reference System, Measurement Unit;

Selection of the meridian strip with UTM and Gauss-Krueger coordinates;

UTM and Gauss-Krueger coordinates with and without meridian strip number;

Selection of measurement units;

Use of summands and multipliers for the coordinate components;

Monitoring of range limits;

Option for automatic assignment of a Reference System to the Coordinate System;

Option for automatic assignment of a NTv2 files to the Reference System;

Visualization:

Viewer for the input and output files;

Display of shapefiles in a Shape Viewer;

Display of KML files in Google Earth;

Display of the last calculated coordinates in Google Maps / Earth and OpenStreetMap;

Screenshots of all program windows in BMP and GIF files;

Print of all program window with the corresponding settings;

View of the NTv2 parameters in a NTv2 Viewer;

View of the actual Coordinate Transformation parameters in a System Viewer;

Adjustable color design with color gradients;

GPS reception:

Reception of GPS coordinates with external GPS device;

GPS device or GPS-mouse by serial or USB interface;

Direct transformation of GPS coordinates;

Triggered and manual GPS reception;

Generating of a GSP file;

Display of the received GPS coordinates in a GPS Viewer;

Help System:

Detailed electronic manual;

Case-related assistance in all program windows;

Focused Info buttons for workspaces which need to be explained;

Uniformly geodetic terms on the program interface and in the electronic manual;

Explanation of geodetic terms in the glossary;

Online FAQ section for common questions;

Helpful online information;

Multilingualism:

Language choice for the user interface;

User interface in seven different languages;

Option to include new languages by the users;

User manual in English and German;

More features:

Possibility to download NTv2 files from the KilletSoft website;

Configuration of user defined coordinate systems;

Configuration of user defined reference systems and ellipsoids;

Network capability;

CITRIX support;

Possibility of a service contract for phone and email support;

Possibility to use the automated newsletter service via email;

Transfer of transformation parameter sets from the SEVENPAR program;

Display of electronically generated fractals for relaxation.

Whats new:

Updates: official site does not provide any info about changes in this version.
