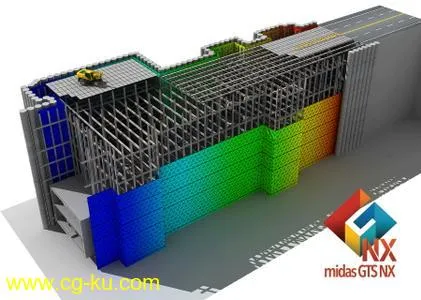

midas GTS NX 是一款针对岩土领域研发的通用有限元分析软件，支持静力分析、动力分析、渗流分析、应力-渗流耦合分析、固结分析、施工阶段分析、边坡稳定分析等多种分析类型，适用于地铁、隧道、边坡、基坑、桩基、水工、矿山等各种实际工程的准确建模与分析，并提供了多种专业化建模助手和数据库。

midas GTS NX 2019 version 1.2 | 2.2 Gb

The MIDAS Geotechnical Engineering product team has presented maintenance release GTS NX 2019 (version 1.2), is a comprehensive finite element analysis software package that is equipped to handle the entire range of geotechnical design applications including deep foundations, excavations, complex tunnel systems, seepage analysis, consolidation analysis, embankment design, dynamic.

midas GTS NX 2019 v1.1 Initial Release: Thermal Analysis - Date: November 19, 2018

The new thermal analysis module includes heat transfer, thermal stress, and seepage-thermal stress analysis types. This analysis type can be used to model the thermal changes in the ground due to environmental changes, or due to the construction of facilities, such as buildings or pipelines. In GTS NX, thermal energy can be exchanged based on the following phenomenological ways: conduction and convention. Thermal analysis (heat transfer, thermal stress, seepage-thermal stress) are available as the steady-state analysis and transient analysis (time-dependent).

After the heat transfer analysis, results such as temperature distribution, temperature gradient, and heat flow direction/size are printed. Thermal stress and thermal deformation due to generated/exchanged heat can be obtained from thermal stress analysis (thermo-mechanical study). Seepage-thermal stress analysis allows for hydrothermal mechanical simulation. Both structural analysis results and seepage/heat transfer analysis results are output.

As the next generation geotechnical analysis software, midas GTS NX

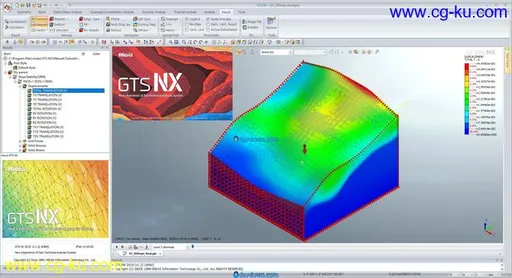

features the newest development in cutting-edge computer graphics and analysis technology. GTS NX fully supports the latest 64-bit OS Graphic user interface. The intuitive interface will enable new users to easily integrate the software in their work process. The fast analysis speed, outstanding graphics, and output capabilities will provide users with a new and advanced level of geotechnical design.

GTS NX also incorporates a hybrid mesh generation function that creates mesh set that use an optimal combination of hexahedron and tetrahedral elements. The main advantage of using hexahedron elements is that they generate comparatively more accurate stress results than tetrahedral elements; and the advantage of using tetrahedral elements is that they are more effective for modeling sharper curves and corners of complex geometry . GTS NX is capable of utilizing both tetrahedral and hexahedron elements without any significant loss in modeling or analysis speed.

GTS NX 2019 Release Webinar

MIDAS IT

has accomplished impracticable tasks, overcoming the difficult environment of the CAE industry in Korea. By using engineering simulation technology based on our own techniques through high-tech graphics, we have been developing as the biggest company that offers CAE software solution to the world.

Product:

midas GTS NX

Version:

2019 version 1.2

Supported Architectures:

x64

Language:

english

System Requirements:

PC *

Supported Operating Systems:

*

Size:

2.2 Gb

* System Requirements:

Midas Programs operate on IBM compatible Personal Computer(PC) in the Windows environment.

In addition, Midas programs require the following minimum configuration :

Operating System

- Microsoft Windows 2000 / XP / VISTA / Windows 7

- MS Internet Explorer Version 6.0 or later version

* Warning : In Windows Vista Operating System, program compatibility

issue occurs in some functionality.

CPU

- Pentium IV or better performing PC processor

- (Pentium IV 3GHz or greater recommended)

Memory (RAM)

- 1GB (2GB or greater recommended)

HDD Space

- 5 GB (30GB or greater recommended)

Video Memory

- 128 MB or greater

Video Card

- GeForce NVIDIA type video card recommended

- (On-board video card is not recommended.)

System Recommendations

In general, better system will make the analysis and software performance smoother and faster.

(higher memory Ram, local drive storage, etc.) There are system recommendations :

Operating System

- 64 bit operating system

- If the system can handle GPU, that is even better.

HDD Type

SSD (Solid State Drive)

Graphic Card

- NVIDIA G-Force Line Graphic card
