TxPlan is a tool intended for the use of professionals, who are involved with the planning of radio and satellite communications systems. TxPlan is an easy to use program to produce simple carrier frequency layout diagrams.

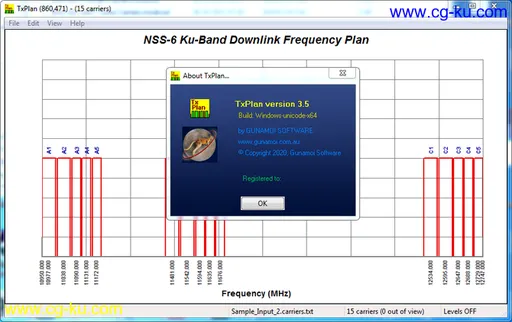

TxPlan can be used to illustrate the layout of transponders on a satellite, or the layout of carriers within a frequency band. The program also allows the user to manipulate the carrier frequencies, for example squeezing them closer together to minimise satellite lease bandwidth, or illustrating the effect of passing them through a frequency converter. It will also calculate and report the frequencies of third order intermodulation products resulting from non-linear devices or PIMs.

As used by Hausfeld Consulting for satellite communications planning.

TxPlan deals only with modern digitally modulated carriers. Analogue AM or FM modulated signals are beyond the scope of this program, but if required may be illustrated on the diagram as a fixed bandwidth carrier.

Features :

Load a list of radio frequency carriers from a simple text file, and display a diagram of the carrier frequency layout.

Save the displayed diagram to a bitmap image file.

Edit the title of the diagram via the View Options menu.

Change the view frequencies, to zoom in on a subset of carriers, or zoom out, etc.

Choose whether to label carrier edge frequencies, or only the centre frequencies.

Comprehensive help topics included on all features of the program.

Change the Colours and Fonts used on the diagram.

Add, Modify or Delete carriers within the program, without having to manually edit a text input file.

Save edited carriers to a file for later use.

Instantly reset the view frequencies to fit the loaded carriers.

Scrunch carriers together to automatically remove any gaps and overlaps, and minimise occupied bandwidth.

Translate all carrier frequencies by a fixed amount, to move them to another band, or simulate the effect of a frequency converter (BUC, LNB, etc).

Save a report file listing the frequencies of all third order intermodulation products which could result from the loaded carriers.
