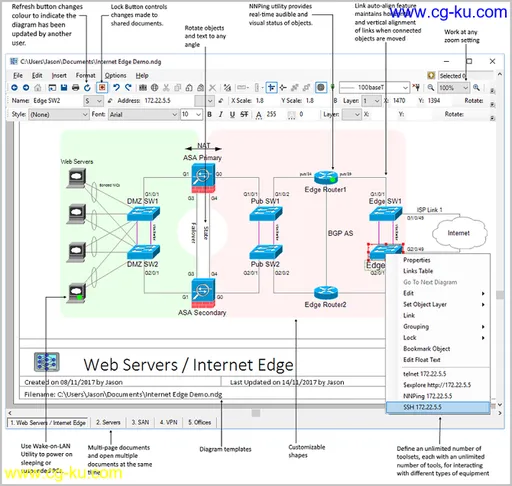

Network Notepad Enterprise Edition is a software tool that was built in order to help you design network diagrams and save them for further analysis and safekeeping.

Features include:

Tabbed multi-page diagrams.

Improved graphics.

Customizable shapes.

Grouping and Locking.

Rotate Objects and Text.

Network Notepad Enterprise Edition Features:

The Enterprise Edition has all the features of the Professional Edition plus new controls aimed at users who need the option of collaborating on diagrams stored on a shared drive

Compatibility - It's a major rewrite using Microsoft .NET, so it offers better compatibility and stability with the latest Windows operating systems compared to the freeware edition.

Zoom - Work with and edit diagrams at any zoom level.

Resolution - Draft, Fine and Superfine modes for improved graphics and printing.

Rotate - Rotate text and rotate objects to any angle. Drag-and-Rotate.

Workspace - Supports larger workspace bitmap / larger diagrams.

Multi-page diagrams - Add as many pages to a diagram/ document as you wish and access the pages instantly using the onscreen page tabs.

Custom shapes - Create your own customizable shapes inside of Network Notepad Professional Edition.

Grouping and Locking - Combine two or more objects to make composite objects.

Auto-align links - Can be enabled for a link style or for an individual link so that connection alignment is maintained horizontally and vertically.

Library Search - Find objects in all of your libraries using keywords. Save the result as a new library.

Enhanced Link Styles - New lightning and curve link styles.

Template Diagrams - When you start a new diagram, select from the list of templates to set the page size, orientation, link styles, and any default drawing such as a title block and border.

Unlimited user-defined function "buttons" and an unilimited number of toolsets.

Print Preview.
