Cad2Shape

实现DXF/DWG与 ESRI格式之间的转换。是个非常不错的工具。

CAD2Shape v7.0 A.03 | 11 Mb

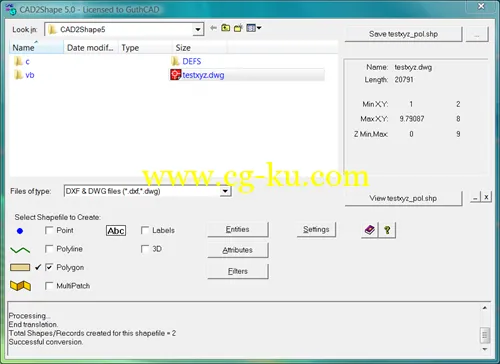

CAD2Shape 7.0 converts AutoCAD DXF/DWG drawing files to ESRI shapefile format files (ArcView, ArcGIS, ArcMap etc.)

Features

. Stand-alone CAD to Shapefile conversion.

. Translates all AutoCAD DXF and DWG versions up to and including AutoCAD 2014 New

. Optional translation to 2D or 3D shapefiles.

. Attach Z value as 'Elevation' data.

. Text to 'Labels Theme'.

. Text to exploded polyline option. - allows direct translation of CAD Text to visible text in ArcGIS/ArcMap/ArcView. The resultant text and placement will be visually identical to that in the originating CAD drawing.

. Attributes translation.

. Translate holes / islands /donuts from originating CAD drawing to Polygon shapefile. see picture

. Extended Entity Data (Xdata) translation.

. Translate 3D surfaces to MultiPatch shapefile types.

. Option to output to raw data file: e.g. CAD to XYZ, CAD to CSV, CAD to BLN New(Surfer Blanking file format).

. MPolygon support. New

. Dimensions/Leader/Tolerance support. New

. Additional XDATA types. New

. Length attribute for polylines. New

. Filter by Layer, Area, Color, Entity.

. Data suitable for import to Google Earth Pro

OS: Win 2003/2008/2012/Citrix/XP/XP64/Vista/Vist64/Win7/win7x64/Win8/Win8x64
