Drawing a Stair Detail in AutoCAD | 332 MB

Software: Autocad | Video: AVC (.mp4) 1280x720 15fps | Audio: AAC 32KHz 1ch

Genre: eLearning | 1h 1m | Project Files Included | 23 May,2014

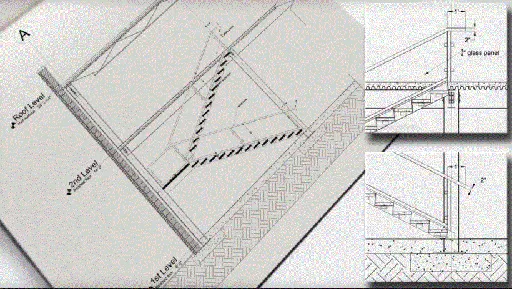

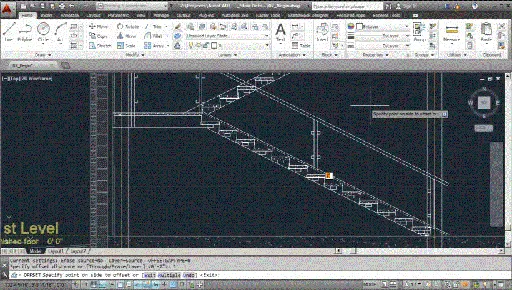

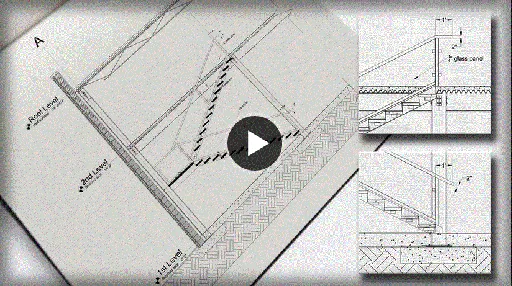

In this set of tutorials you'll learn how to draw a stair detail in AutoCAD. We'll begin the project by using Polylines to draw the basic form of the treads. Once we have the form in place we'll then draw the stringers and landing. We'll finish out the drawing by adding some handrails and balusters as well as text and dimensions. While working with our drawing we'll be sure to adhere to the code requirements which can be found in the International Building Code. By the end of this training you'll have a solid understanding of what it takes to draw a professional looking and code compliant stair detail for your permit set of drawings.
