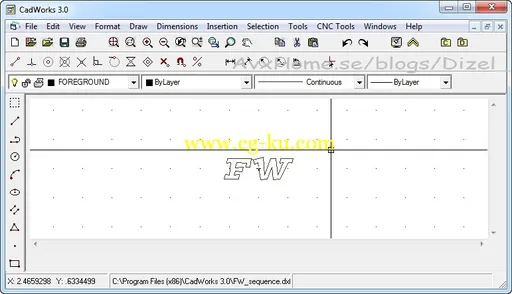

CadWorks 3.0.68 | 5 Mb

CadWorks is a companion program designed to work with FoamWorks 3.0 It supports basic CAD tools as well as utilities to create the DAT file (non scaled description of a profile) from DXF, DWG drawings.

Conversion functions include

:

- Explode all Block entities of the DXF (individual function)

- Replace polylines, splines with lines (individual function)

- Automatic Conversion to DAT with 2 or 4 mouse clicks. 2 mouse click for sequentially drawn dxf files and 4 mouse clicks for randomly drawn files.

- Explode of LINEs and ARCs into specified number of segments

- Sequentially drawn dxf file

- Prep DXF (remove block, polylines, etc)

- Specify starting point and cut direction

- Randomly drawn dxf file

- Prep DXF (remove block, polylines, etc)

- Specify starting point and cut direction

- Reorganize DXF per step 2 specification

- Convert to DAT
