3DVIA Composer是 3DVIA Composer 解决方案的核心产品。作为一种桌面应用程序，可用于直接从 3D 数字产品数据创建产品文档内容。3DVIA Composer 是为非 CAD 人员设计的，不需要 CAD 知识或培训。可以按现有公司标准创建爆炸视图，并加上标签和零件序号进行注解。此外，3DVIA Composer 允许创建样式和智能视图，后两者可应用于任何内容以确保视觉效果的一致性。

使用 3DVIA Composer 的内置技术图解功能可以轻松快捷地制作 2D 线条图。输出内容包括 3D 动画以及 JPEG、SVG、CGM 等高分辨率图像。

3DVIA Sync是一种自动化工具，该工具可关联 3DVIA Composer 生成的内容与 3DCAD 数据。元数据、几何图形或产品结构中的更改可以在 3DVIA Composer 生成的内容中自动进行更新，从而确保文档的准确性和一致性。

3DVIA Safe是一种加载项实用程序，用户可用来控制和管理对 3DVIA Composer 生成的内容知识产权的访问。有了 3DVIA Safe，内容创建者可以在用3DVIA Player 播放内容时管理访问控制，还可以使用专利技术“Secure 3D Brush”防止对知识产权的复制或盗用。

3DVIA Check是一种加载项实用程序，利用该实用程序，用户能确保各种操作步骤在现实中得以执行。3DVIA Check 提供动态和静态碰撞检测，允许用户快速检验维修和装配工艺。这样，可以确保操作员能够对装配体中的零部件进行维护或修理。3DVIA Player 是一种免费产品，文件接收者可利用它来查看 3DVIA Composer 生成的文档。3DVIA Player 的高性能与 3DVIA Composer 没有什么两样。3DVIA Player 决不只是一个简单的浏览器，文件接收者可用它来获得与产品文档高度互动的体验。此外，3DVIA Player 还能嵌入到 MS Office 应用程序、HTML 和 PDF 中。

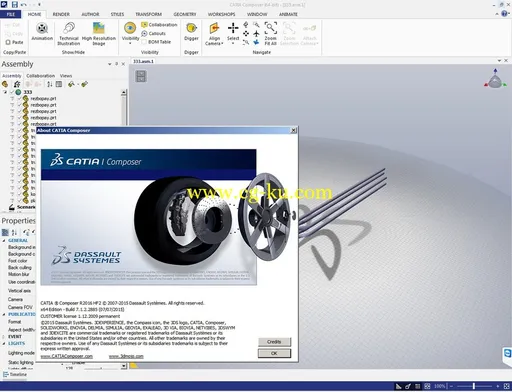

DS CATIA Composer R2016 HF2 | 791.9 mb

Dassault Systemes, the 3DEXPERIENCE Company, world leader in 3D design software, 3D Digital Mock Up and Product Lifecycle Management (PLM) solutions, has released update (HF2) of CATIA Composer R2016 is a technical communication software that lets you clearly explain products using existing 3D CAD data.

New enhancements in CATIA Composer R2016 include:

New Timeline Tracks

The timeline has been revamped with additional tracks to offer an array of new functionality for your 3D animations. The existing Camera and Digger tracks remain unchanged. However, the track for actor keys has been split into the following:

- Location track: displays the keys indicating an actor’s location.

- Properties track: expands into sub-tracks (such as Opacity, Materials and Events) displaying property-related keys.

- Viewport track: displays all the viewport property keys.

Restore Active View Visibility

A new visibility command is now available in the Home ribbon to let you restore the visibility of all actors of the active view.

Use it when you have made changes in the view (such as moving or adding actors, changing actors' visibility) and then want to restore the visibility of all actors to the last updated state. Other properties such as color, opacity, position, etc. will not be restored.

Thick Border for Active View

The active view is now surrounded by a thick border in the Views pane. This enables you to differentiate between the active view and selected views (which are highlighted and surrounded by a thinner border).

Points Imported as Stay on Top

A new advanced document property, IOImportPointsStayOnTop, lets you specify that points and construction points are imported as staying on top.

Support of CATIA V5-6 R2015 (R25)

CATIA V5-6 R2015 (R25) GA is now supported.

New Features in Composer Application Programming Interface

The Composer Application Programming Interface (API) has been enhanced with a number of features.

Composer PMI Remover

If you are facing performance-related issues when loading Composer files (.smg or .smgXml) containing large amounts of Product Manufacturing Information (PMI), a tool is now at your disposal in the Composer installation folder, that will let you remove this PMI from specified files. Removing PMI from .smg or .smgXml files reduces their size, and therefore, consequently reduces the time it takes to load these files in Composer.

About Dassault Systemes

Dassault Systemes, the 3DEXPERIENCE Company, provides business and people with virtual universes to imagine sustainable innovations. Its world-leading solutions transform the way products are designed, produced, and supported. Dassault Systemes’ collaborative solutions foster social innovation, expanding possibilities for the virtual world to improve the real world. The group brings value to over 170,000 customers of all sizes, in all industries, in more than 140 countries.

Name:

DS CATIA Composer

Version:

(64bit) R2016 HF2 (build 7.1.2.2885)

Home:

http://www.3ds.com

Interface:

multilanguage

OS:

Windows 7even / 8 / 8.1 / 10

Size:

791.9 mb
