TruckSim软体用於模拟及分析重型车辆，如卡车、巴士、客车及重型拖车载重车等，对不同方向盘、煞车及油门加速等之反应。

TruckSim

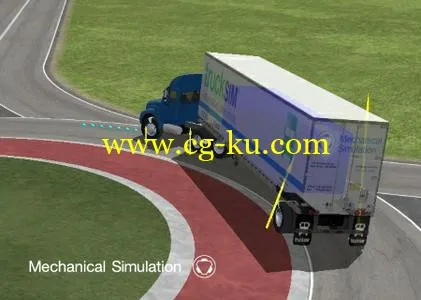

建有多种强大功能。其中，车辆数学模型、图形化资料库及绘图器(plotter)等。新的动画软体Surface Animator则运用OpenGL技术，可表现出阴影路面，提供使用者更快、更逼真的动画模拟效果。所使用的技术与CarSim一样，不过它还内含双倍数轮胎的模型、不对称操控驾驶，以及拖、掛车多种不同的联结形式与轴承等模型。

功能特色：

．正确性高

．易於使用Ease of use (point-and-click graphical user interface)

．参数化之模型

．标準化硬体 (Windows desktop /laptop PCs)

．模拟速度快

．Database (Built-in vehicles, components, inputs, existing runs menu)

．Self-Contained

．可扩充性的 (work with Simulink)

．标準化

CarSim

/TruckSim 2016.1 | 1.5 Gb

Mechanical Simulation Corporation has released update of CarSim 2016 and TruckSim 2016; vehicle dynamics simulation software which features improvements for both new and existing users.

Some highlights of the latest releases include:

Road Building and GPS

- New GUI screens were added to build roads and paths with segments that can be straight, circular arcs, clothoid spirals, or X-Y tables.

- GUI screens for X-Y tables include an option to import GPS data. GPS data files can be obtained on-line from a new page on the CarSim web site:

https://atlas.carsim.com

.

- Multiple 3D road surfaces are connected with built-in boundaries using four new GUI screens. Tires and moving objects automatically change surfaces when they cross boundaries.

Vehicle Models

- The steering system model was rewritten internally to support options for replacing and/or disabling parts of the model with external components.

- The twist-beam suspension model has been extended with six new GUI screens to account for the many compliance conditions that occur in the K&C tests and on the road.

ADAS Sensors (Optional) and Moving Objects

- ADAS Sensor detections include five more variables; the GUI screens for sensors and moving objects have been extended; dashboard alerts are included; many ADAS examples were added.

- VS Visualizer supports visual sensors with shared memory regions, where each pixel has an RGB value, or distance value, or vector normal information. These sensors use the full 3D shape, texture, and lighting information for the entire scene, including the

ground and all objects.

Interfaces to Other Software

- Export of output variables to Excel and MATLAB has been greatly simplified: users can drag and drop from VS Visualizer, or set up new runs to write Excel/MATLAB files from within the GUI.

- VS Visualizer supports VS Results Analysis Package (VSRAP) files with all animator and video information from a run. Colleagues without CarSim can now view CarSim results.

- A new interface called VS STI Interface (VS version of Standard Tire Interface) supports external tire models (e.g., TASS MF-Tyre/MF-Swift, COSIN F-Tire). Users can now connect custom tire models using C source code provided with CarSim 2016.

- CarSim 2016 works with TASS MF-Tyre/MF-Swift 7.0, released in November 2015 for Windows and dSPACE DS1006. This is the first commercial version of MF-Tyre that runs on a dSPACE RT system, and it is available only for CarSim RT.

- CarSim 2016 supports the Functional Mock-up Interface (FMI) in co-simulation mode for FMI 1.0 and 2.0. It has modes for a completely self-contained Functional Mock-up Unit (FMU), or an FMU that handles input and output involving external files.

About Mechanical Simulation Corporation

Mechanical Simulation Corporation is a technology leader in the development and distribution of advanced software used to simulate vehicle performance under a wide variety of conditions. The company was established in 1996, and from its Ann Arbor, Mich., headquarters provides car, truck and motorcycle simulation packages, training and ongoing support to more than 90 OEMs and Tier 1 suppliers, and over 160 universities and government research groups worldwide.

Name:

CarSim/TruckSim

Version:

2016.1 r20961

Home:

http://www.carsim.com

Interface:

english

OS:

Windows XP / Vista / 7even / 8 / 8.1

Size:

1.5 Gb
