Ashampoo 3D CAD Pro是德国Ashampoo公司出品的建筑设计专业软件，为有专业要求的 CAD 用户提供了解决方案。

通过 2D-DXF/DWG 导入功能和 2D DXF 导出功能，即使是与其他项目成员或客户交换平面图也能轻松进行，而且无需考虑使用的是什么系统。此外还有一个功能，那就是可在计划期间引入外部 3DS、3D-DXF 和 VRML 1 对象。由于可以使用数字参考点来定位对象，从而可实现无限制且详细的构造。

Ashampoo 3D CAD PRO 另一个有用的软件功能就是可以使用不同材料（如绝缘体、石膏和混凝土地面）创建多层墙、天花板和地板，其属性可以精确到毫米。为了便于进一步处理，可将数据导出为显示数量、分配的任务项目和成本计算的 PDF 列表。

直观的方案编译功能允许个性化设计完整的施工图纸（输出尺寸可达 DIN A0），符合 DIN 标准，并包含剖面图、平面图、文本段落和 2D 符号 — 可选择自动完成此过程。例如，为了便于向客户演示，本软件能够以高分辨率渲染计划对象的各种印象，以便在项目的初期即可把握最终的项目情况。

本软件可完美地替代市面上极其昂贵的 CAD 产品，这些 CAD 产品的售价通常为数千欧元/用户。本软件一个主要特色就是在设计构造方案的整个过程中保持良好的连续性，即如果修改设计，那么最终构造方案会自动更新，甚至还可以直接在最终的构造方案中修改建筑组件。

用户友好界面、精确的结果、面面俱到的功能（包括成本计算）。

Ashampoo 3D CAD Professional 6.0 Multilingual | 1.83 GB

Ashampoo 3D CAD Professional 6 is the professional solution for designers, draftsmen and landscapers. Plan, visualize and communicate your design ideas professionally and fuss-free! Create plan sections for building applications or construction documentation that meet the highest standards. Use powerful features to achieve technical excellence and rely on extensive modeling capabilities to design your own construction elements or sculptures and add an artistic touch to your building creations.

Import millions of 3D objects with ease

The new Ashampoo 3D CAD Pro 6 allows you to load and edit various additional 3D object formats and save the results to the integrated object catalog. This gives you access to millions of 3D objects! Simply import them and add them to your designs! With support for SketchUp or Collada models, you can now instantly use numerous generic and brand-specific models.

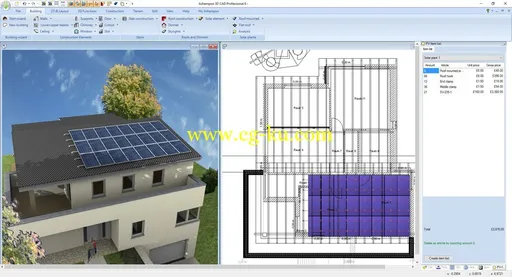

Photovoltaic installations - rooftop arrays and flat roofs

No good project design should be without photovoltaic installations. For roof-mounted system, you can already specify their layout, select modules from the object catalog and their placement during the setup phase. For flat roofs, you can simply specify which parts will be or will not be used for photovoltaic elements during the design phase. When you're done, you can place the entire installation in just two clicks and adjust distances between rows of panels or rotate and realign them - it's the perfect approach to preliminary planning!

Powerful area analysis

Due to popular demand, we have added additional area analysis and calculation features plus suitable output templates. Aside from living space you can now also process floor space, walls, ceilings, facades and many other areas. Facade areas can also be easily exported to PDF, RTF or Excel files! Position lists for windows are also no longer a problem.

Mirror objects with ease

Two powerful tools will help you mirror 3D and 2D objects and symbols either across any axis or their center points. This also works with multi-selections of the same element type which can save you a lot of time! CAD software doesn't get any more flexible than this!

Unmatched efficiency

The clean, thematically structured user interface gives you 1-click access to all features. Everything is logically arranged and easily accessible. You decide whether you'll use classic toolbars or the modern ribbons you know from Microsoft Office products.

Input aids and wizards for straightforward handling

From roof designs to terrain modeling - Ashampoo 3D CAD Pro 6 provides useful input aids and wizards for all complex operations. You focus on the contents and the software does the rest - as it should be.

Exterior and interior design elements included

The built-in object catalog gives you access to various building components, textures, materials and symbols. It takes only a single click to place doors, windows, balconies, carports as well as sanitary and electrical installations in your designs. You can import additional objects from SketchUp and Collada. This gives you a detailed view of the finished project already in the planning phase - down to the last details!

Language

: Multilingual
