ArchiFrame for Archicad 19 and 20 | 89.8 MB

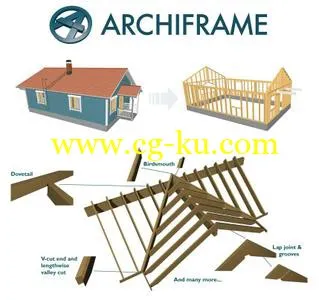

Turn Architects' Plans into Complete Wooden Structures – Everything in a Single ARCHICAD Model. ArchiFrame is an add-on that extends ARCHICAD into a complete designing tool for wooden structures. ArchiFrame provides tools for wall framing,column and beam structures, intermediate floors and roof structures.

With these tools it is possible to reshape planks and beams in any way to get the desired result. Everything is inside a single ARCHICAD file – including 3D model and 2D elevations with semi-automated layouts and listings. Individual planks can be hand manufactured using ArchiFrame dimension drawings and cut lists, or produced with CNC.

- Bill of Materials, CNC and Prints

- Framing in 3D and Elevations in 2D

- Tools for Elements and Individual Planks etc.

- Weatherboards

- Trusses in 3D and in Element Elevations

- 2D Foundation Dimensions

System Requirements:

Compatible with ARCHICAD 19-20

Home Page

-

http://www.archiframe.fi
