Infinite Skills - AutoCAD - Working With References Training Video

English | MP4 | 1280x720 | AVC 246 Kbps 15.000 fps | AAC 64.0 Kbps 44.1 khz | 2.25 hours | 448 MB

Genre: Video Training

In this AutoCAD - Working with References training course, expert author Shaun Bryant teaches you everything you need to know about references in AutoCAD. This training course is designed for users that already have a fundamental understanding of working in AutoCAD.

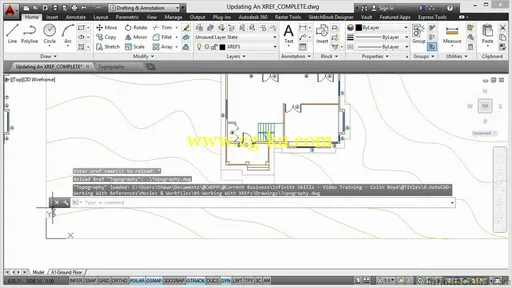

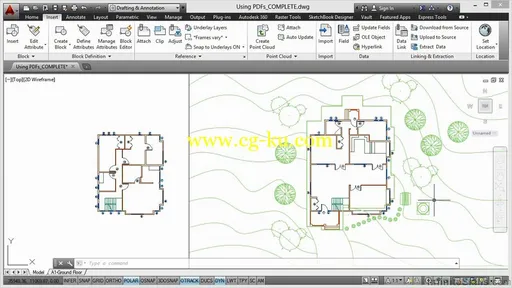

You will start by learning the basics of working with references, such as how to use the reference panel and reference fading. You will then learn about the reference palette, including how to attach references, refresh and reload, and work in the details panel. Shaun will teach you about various reference details, which include attachments, overlays, scale, and rotation. In this video tutorial, you will work with XREFs, and learn how to unload, detach, bind, and update an XREF. Shaun will teach you about underlays, showing you how to adjust, clip, and scale an underlay. Finally, you will learn how to plot with XREFs using layers, layer states, and layer property and group filters.

Once you have completed this video based training course on working with references in AutoCAD, you will have an in-depth understanding of this subject and how to apply your enhanced skills to your own design and drafting projects. Working files are included, allowing you to follow along with the author throughout the lessons.

01. Introduction

02. References 101

03. Reference Palette

04. Reference Details

05. Working With XREFs

06. Underlays

07. Scaling With Underlays

08. Plotting with XREFs

09. Conclusion

10. Credits
