DrasticPreview Pro 5.0.466 | 54.2 MB

DrasticPreview Pro takes your AJA, BlueFish444 or Blackmagic video board and adds output support for a huge range of file formats. It plays production file formats like ARI, DPX, RMF, DNG, 16 bit TIFF, SGI, YUV, and VPB, intermediate formats like uncompressed CINE, MOV, AVI, WMV, MPG, MTS, TS, MXF, MP4, and GEN and scientific formats like .Y.U.V, Luma/Rmy/Bmy, Hdr/Raw/Yuv, Y4M, 4224 and DVS directly to the HD-SDI outputs of your hardware.

DrasticPreview Pro lets you zoom/center for close inspection, supports real time and static metadata and a variety of playback modes, provides EBU r.128 audio metering and closed caption display, and includes Vectorscope, Waveform Monitors (YCbCr and RGB), per pixel data view and Histogram signal analysis tools.

DrasticPreview Pro Professional Media Player

DrasticPreview Pro is a media player designed to support the majority of media formats used in the broadcast and production industries. DrasticPreview Pro can play many, many different flavors of media files. It supports today's most important file types, and includes a number of others we've added over the years. This innovative software allows the user to view their files on a VGA/DVI monitor and the HD-SDI outputs of supported video cards, without tying up the native, or even compatible (typically in high demand) production or broadcast device or application. Play media for collaborative and review applications, scene marking and EDL construction. Play media stranded by failed or unavailable legacy devices or applications. Play all your files from one station, using one application.

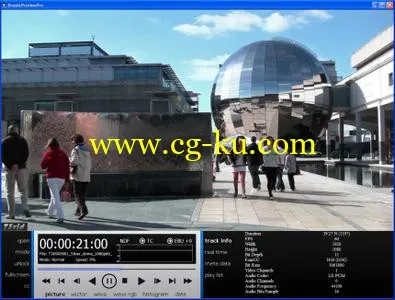

The main GUI offers a full range of transport controls for forward and reverse playing and cueing, displays time code and audio levels, playback mode, and file name, and shows a slider to indicate the current position within the clip. The on-screen viewer window may be scaled to effectively accommodate varying viewing requirements, including a full-screen mode.

Media can be selected through a standard browse approach, or dragged and dropped onto the display window. Once loaded, the clips may be played or viewed in various playback modes, including normal, looping, and palindromic. DrasticPreview Pro provides a full range of keyboard/number pad commands for transport control and other settings, and window resizing including zoom and pan controls. Cut, copy and paste (CTRL+X/C/V) or timecode is also available for moving timecodes to text documents, spreadsheets or TCCalc. Pasting timecode will automatically seek the file to that point.

The Transport/Playback Section offers the following functionality:

- Time Code Controls - The current time code location is displayed, and the user may click on the time code and enter a time code location by the keyboard, and press enter to cue up that location.

- File Name Display - The current file name is displayed.

- Mode Display - The current playback mode is displayed (Normal, Palindrome or Loop playback modes are supported).

- Speed Display - The current playback is displayed, 100% being normal playback speed. A negative percentage is indicated for reverse playback.

- Video Standard Display - The video standard of the current clip is displayed.

- Time Code Source Control - The selected time code source is displayed, and the user may select between available time code sources by clicking on this control and selecting from the popup menu.

- EBU Control - The selected EBU mode is displayed and the user may select between available EBU modes by clicking on this control and selecting from the popup menu.

- Audio Meters - Audio meters are displayed for up to 16 channels of audio.

- Picture - Select Picture to view the normal video output.

- Vector - Select Vector to see the output through the Vectorscope.

- Wave - Select Wave to view the output through the YCbCr Wave Form Monitor.

- Wave RGB - Select Wave RGB to view the output through the RGB Wave Form Monitor.

- Histogram - Select Histogram to view the output through the Histogram.

- Data - Select Data to view the hex or decimal value associated with each pixel in the image.

- Position Bar and Slider - Click on any point on the slider to instantly cue that relative point in the file, or 'grab' the pointer and drag it to quickly scrub through to find a particular scene

Fast Reverse - Play the file in reverse at the fastest possible speed

5 Seconds Back - Cue the frame 5 seconds before the current location (or the beginning if less than 5 seconds from the first frame)

1 Frame Back - Cue the frame immediately before the current frame, useful for finding a specific location

Reverse Play - Play at -100%, or normal speed in reverse

Pause - Stop playback and display the frame at the current location

Stop - Stop playback and cue the first frame

Play - Play at 100%, or normal speed

1 Frame Forward - Cue the frame immediately after the current frame, useful for finding a specific location

5 Seconds Forward - Cue the frame 5 seconds after the current location (or the end if less than 5 seconds from the last frame)

Fast Forward - Play the file (forward) at the fastest possible speed

more…
