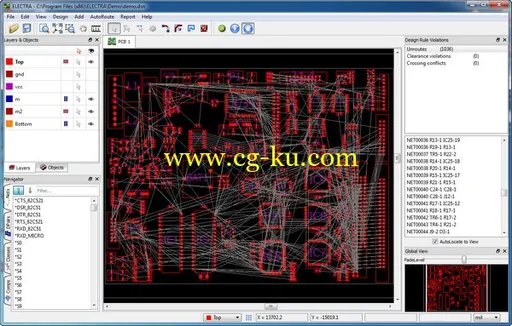

Konekt Electra 5.91的图片1

Konekt Electra 5.91 | 14.6 MB

ELECTRA is a new generation of Shape-Based Autorouting software for PC boards. By contrast with traditional gridded maze autorouters, a shape-based approach allows for more efficient use of routing area and is more suited to handle complex design rules requirements of high density SMD or through holes boards and achieve the highest route completion rates.

ELECTRA supports industry standard format by reading design file (Specctra DSN). Routing results are saved into standard route file format (RTE) or session file (SES). ELECTRA is designed to plug into an existing PCB CAD system environment that is supporting DSN file format such as Altium, Pulsonix, CADInt, TargetPCB, SeeTrax, DipTrace, DEX, CadSoft Eagle and other popular PCB CAD systems.

Features

Interactive Contour Router with Push and Shov

AutoRouting of up to 256 layers

Automatic Differential pairs routing

Automatic Lengthening to reach minimum length

Automatic Matching to target length

Constraint Editing with Ease

Wiring and Clearance rule by layer, net classes and inter-classes

Via and use_layer rule by net class

AutoRouting by polygonal keepin fence

Width and spacing rule by area

SMD escape fanout control

Routes SMDs on both sides

Blind and buried vias support

Split Power/Ground Planes support

Customizable cost factors

Post-route cleanup optimization

Real-time display of routing progress

Anti-aliased rendering

Fade view on selection

DRC Violation browser

Dockable Navigation Panels

Preview DO file

Batch routing option

TCL Scriptable routing strategy (DO file)
