AutoCAD Plant 3D Essential Training: User

MP4 | Video: 720p | Duration: 5:49:08 | English | Subtitles: VTT | 1307.8 MB

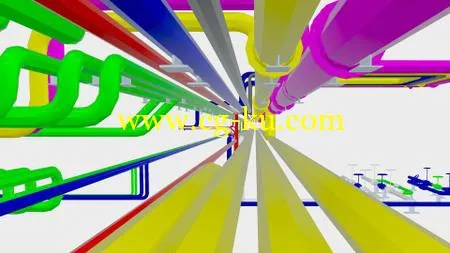

AutoCAD Plant 3D design software boasts tools and features that can help you visualize what your plant design will actually look like after construction. In this course, learn how to get started with Plant 3D. Irene Radcliffe kicks off the course by showing how to set up the Plant 3D workspace, and use the ribbon menu, tool palette, and properties. She demonstrates how to work with Plant 3D files, and then explains how to create basic steel structures using the structural tools. She then covers how to work with equipment, route piping in your models, modify and reuse piping, and create orthographic drawings and production isometrics. To wrap up the course, she discusses how to generate project reports using the Report Creator program that comes with the software.

Topics include:

Setting up the Plant 3D workspace

Using on-screen tools

Working with Plant 3D files

Creating a new model

Importing an existing Plant 3D file into a project

Locating missing drawing files

Creating a structural grid

Working with the structural steel component

Creating equipment

Basic pipe routing

Moving and copying data

Locating components using Data Manager

Linking P&ID line information to your 3D model

Orthographic drawings

Isometric drawings
