Modeling a Motorcycle Engine with SOLIDWORKS

MP4 | Video: 720p | Duration: 1:49:10 | English | Subtitles: VTT | 419.8 MB

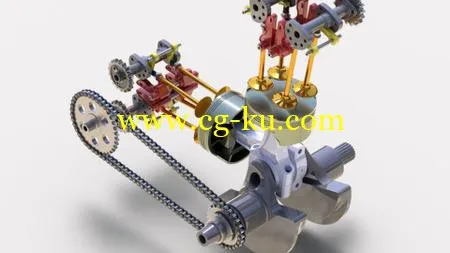

Join Leon van den Heever as he models some of the major internal components of a motorcycle engine—a teaching example that will help you master the tools and techniques employed in a typical SOLIDWORKS automotive design project. Here you'll be exposed to many of SOLIDWORKS' tools, including equations and configurations, and learn how some of the available tool attributes can enhance their power. Follow along as Leon sketches and builds the flywheel; connects the connecting rods, valve, pistons, and sprockets; and pulls the components together in a bottom-up assembly.

Need a better background in SOLIDWORKS before you can continue? Check out SOLIDWORKS 2014 Essential Training.

Topics include:

Sketching the flywheel

Building and cutting the flywheel shafts

Filleting the flywheels

Splitting the connecting rod

Building the sprocket

Modeling the camshaft

Combining parts into an assembly
