EveryCircuit是一款电子电路模拟工具，可以建立任何电路，点击播放按钮，就能够观看动态的电压和电流的动画。

软件功能：

+动画电压波形和电流流

+模拟控制旋钮调整电路参数

+自动布线

+示波器

+无缝DC和瞬态仿真

+单播放/暂停按钮控制模拟

+保存和加载的电路原理图

+移动从地面建造的仿真引擎

+直观的用户界面

+没有广告

组件：

+源代码，信号发生器

+电阻器，电容器，电感器

+二极管，齐纳二极管，发光二极管（LED）

+ MOS晶体管（MOSFET），

+双极结晶体管（BJT）

理想运算放大器（运放）

+数字逻辑门，OR，NOT，NAND，NOR，XOR，XNOR

EveryCircuit

2.02

MuseMaze | November 26, 2013 | Education | Android | .apk | 4.9 Mb

All joking aside, this time you will understand how electronic circuits work.

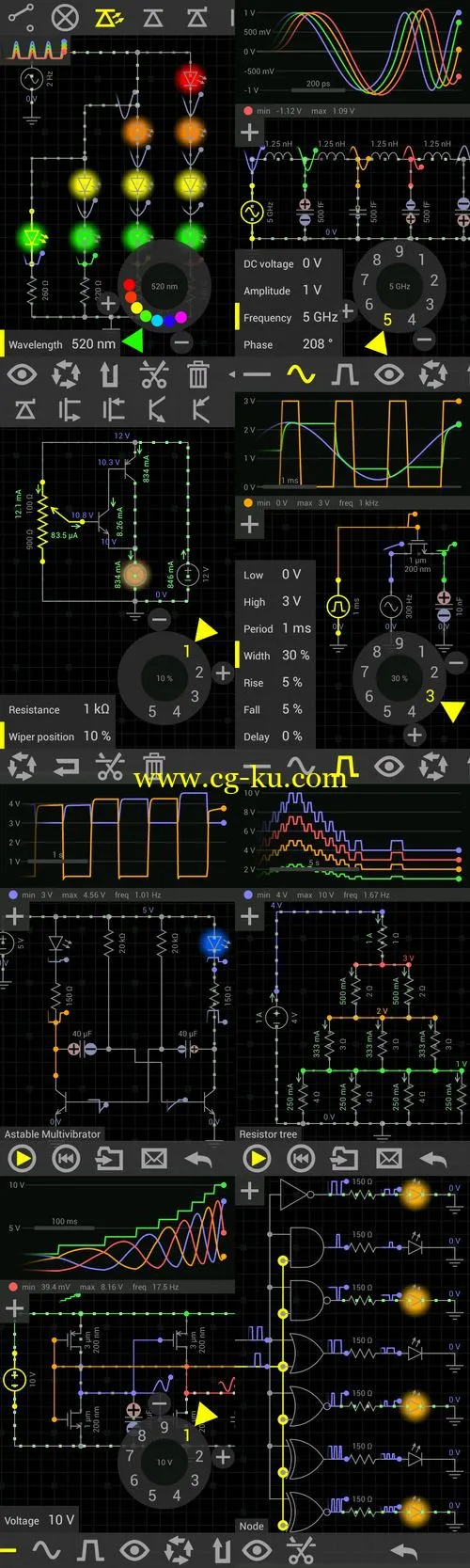

Build any circuit, tap play button, and watch dynamic voltage, current, and charge animations. This gives you insight into circuit operation like no equation does. While simulation is running, adjust circuit parameters with analog knob, and the circuit responds to your actions in real time. You can even generate an arbitrary input signal with your finger!

That’s interactivity and innovation you can’t find in best SPICE tools for PC like Multisim, LTspice, OrCad or PSpice (trademarks belong to their respective owners).

EveryCircuit is not just an eye candy. Under the hood it packs custom-built simulation engine optimized for interactive mobile use, serious numerical methods, and realistic device models. In short, Ohm’s law, Kirchhoff’s current and voltage laws, nonlinear semiconductor device equations, and all the good stuff is there.

Growing library of components gives you freedom to design any analog or digital circuit from a simple voltage divider to transistor-level masterpiece.

Schematic editor features automatic wire routing, and minimalistic user interface. No nonsense, less tapping, more productivity.

Simplicity, innovation, and power, combined with mobility, make EveryCircuit a must-have companion for high school science and physics students, electrical engineering college students, breadboard and printed circuit board (PCB) enthusiasts, and ham radio hobbyists.

Join EveryCircuit cloud community to store your circuits on cloud and access them from any of your Android devices. Explore public community circuits and share your own designs. The app requires a permission to access your account for authentication in EveryCIrcuit community.

Thanks to Prof. N. Maghari for technical discussions, feedback, and help with designing circuit examples.

Features:

+ Growing public library of community circuits

+ Animations of voltage waveforms and current flows

+ Animations of capacitor charges

+ Analog control knob adjusts circuit parameters

+ Automatic wire routing

+ Oscilloscope

+ Seamless DC and transient simulation

+ Single play/pause button controls simulation

+ Saving and loading of circuit schematic

+ Mobile simulation engine built from ground-up

+ Shake the phone to kick-start oscillators

+ Intuitive user interface

+ No Ads

Components:

+ Sources, signal generators

+ Controlled sources (VCVS, VCCS, CCVS, CCCS)

+ Resistors, capacitors, inductors, transformers

+ Potentiometer, lamp

+ Switches, SPST, SPDT

+ Diodes, Zener diodes, light emitting diodes (LED)

+ MOS transistors (MOSFET)

+ Bipolar junction transistors (BJT)

+ Ideal operational amplifier (opamp)

+ Digital logic gates, AND, OR, NOT, NAND, NOR, XOR, XNOR

Next:

+ More components

What's New

Support of Intel x86 CPU architecture

Fixed an issue in user registration

Additional information

Updated November 26, 2013

Size Varies with device

Current Version Varies with device

Requires Android Varies with device

Content Rating Everyone
