CG数据库 >> PCB Design: Make Arduino Nano using Altium Designer

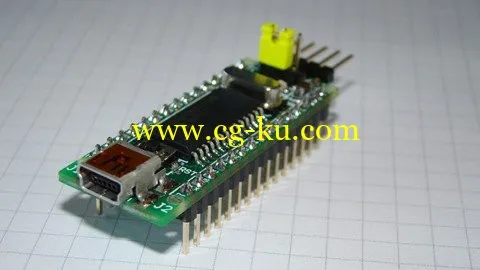

PCB Design: Make Arduino Nano using Altium Designer的图片1

3,5h | Video: .MP4, 1280x720, 30 fps(r) | Audio: AAC, 44100Hz, 2ch | 2,95 GB

Genre: eLearning | Language: English

What you should expect after taking this course:

Get started PCB design using Altium Designer.

Download and install Altium designer.

Create your own component library so that you can create your own components that you don't have a library for which will help you freelance online since many jobs ask to create component libraries.

Create the Arduino Nano Schematic in Altium designer.

Wiring components in Schematic view.

Transfer schematic into PCB.

Place components on board.

Create a multilayer board.

Route layers and place components on board.

Autoroute to save time.

Eliminate design errors.

Create Gerber files for your manufacturer.

What are the requirements?

Time, Dedication and Patience to learn and implement new knowledge.

A PC

What am I going to get from this course?

Create an design a custom Arduino Nano in Altium Designer

Draw the schematic of an Arduino Nano and wire components

Create their own custom components and component library

Compile design detect and eliminate design errors

Define board shape and size

Use to the autorouting capabilities to speed up the routing process

Route Printed Circuit Board (PCB)

Use design rule checker to eliminate errors and reduce manufacturing board iterations

What is the target audience?

Learn basic to intermediate PCB design

Have a tech kickstarter idea, that you want to get of the ground

Want to create your own custom Arduino Printed Circuit Board (PCB).

Want to get a job in PCB design

Want to learn Altium Designer in the shortest possible time.

Want to get started creating cool gadgets
