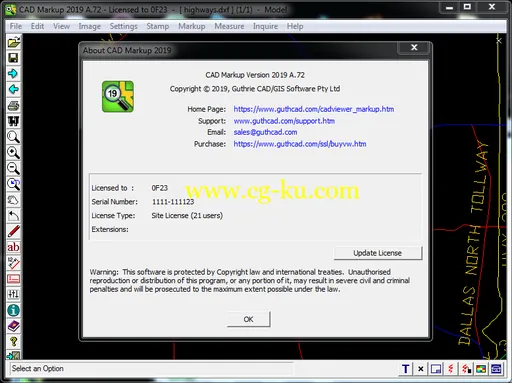

一款由Guthrie公司官方打造的CAD看图软件，软件拥有所有CAD查看功能，支持查看文件的同时对CAD文件进行标记和测量，支持AutoCAD图形和PDF格式文件，标记的图形将会和原始文件分开存储，便于用户的调用，简单实用!English | File size : 47.8 MBCAD Markup is an essential tool for drawing revisions and corrections and overlays CAD and PDF drawings with markup annotations such as text, lines, boxes, circles, and arrows.
Dimensions and area calculations can be added to the drawings.
Supported file formats for markup: DWG/DXF/DWF, PDF, DGN, HPGL, JPG, TIFF etc.
• Add, edit, move and delete Markup Text• Measure Dimensions (Aligned, Horizontal, and Vertical)• Customise “drawing checked” stamp by the user.
• Store markup edits separately from original CAD drawings• Markup edits can be saved to a PDF or raster image files (JPG, TIFF, BMP etc.)Features :BASIC FEATURES:• Intuitive User Interface• View, zoom, pan and print CAD Drawings• Browser style Forward/Back buttons• Load multiple (up to 1000) drawings simultaneouslyFILE FORMAT SUPPORT FOR MARKUP:• Markup all AutoCAD DXF and DWG drawings up to AutoCAD 2020• Markup multiple page PDF drawings• Markup Microstation DGN (v7-v8i)• Markup all supported raster image drawings (JPG, TIFF etc.) and HPGL drawingsUSEFUL MARKUP FEATURES:• Add, edit, move and delete Markup Text• Add, move and delete Lines, Boxes, Arrows and Circles• Insert image, add hyperlink and draw wipeout• Set Styles for Markups, DimensionsMEASUREMENT FEATURES:• Measure Dimensions (Aligned, Horizontal, and Vertical)• Measure Path Length, Rectangular area and Polygon area• Overlay user defined Area and Polyline Length Measurements• Measurement settings and calibrationSTORING MARKUP EDITS:• Store Markup Edits for later use with the original drawing file remaining untouched• Set alternate folders for Markup Edits• Option to directly embed Markups to source DXF/DWG drawings• Configure shared Markups storage folders for team collaborationMARKUP COLOR/ DISPLAY:• Markup Layer toggle allows Markups to displayed or turned off• Keep Markups in color when drawing is toggled to Black/White• Blank out (hide) portions of the drawingIMPORT/OUTPUT MARKUP:• Import/Export MarkupsSTAMP FEATURE:• User-defined ‘Time/Date’ / ‘Checked by’ stamp
